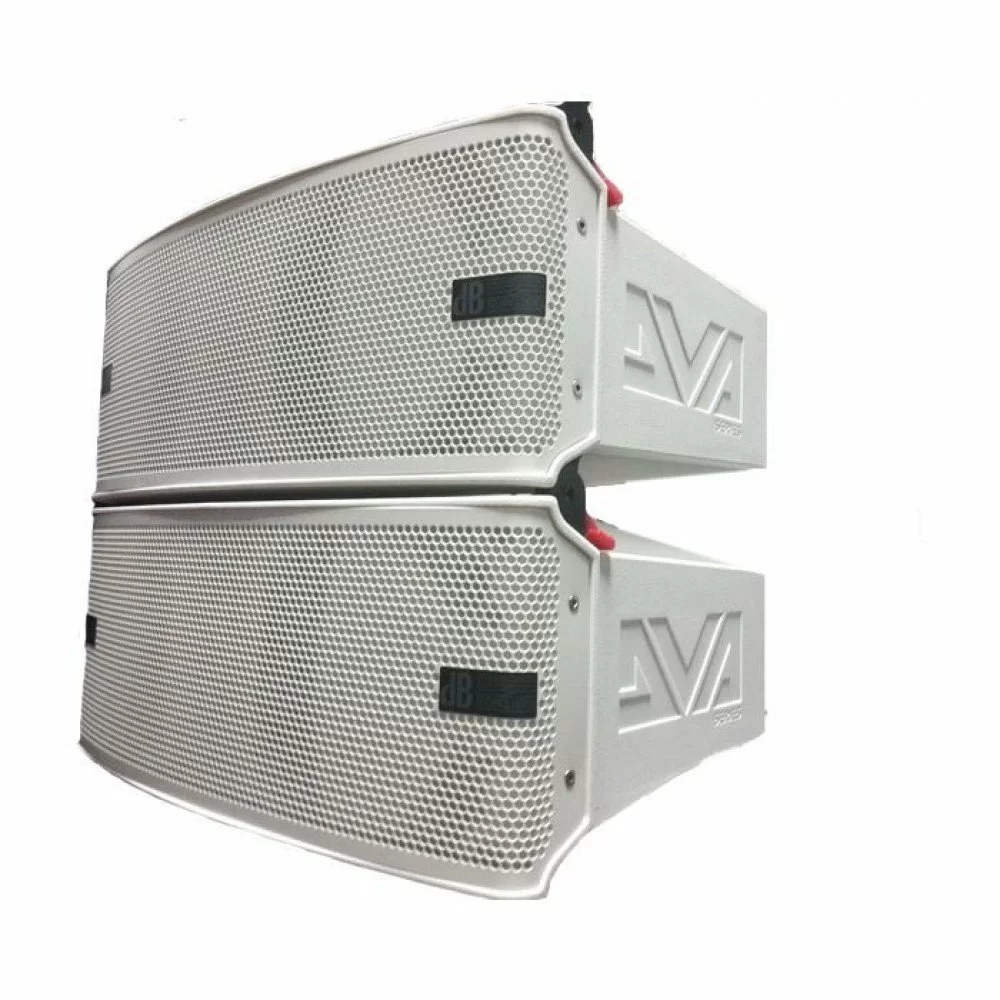

DVA-M2M/M2S White

dB Technologies

DVA-M2M/M2S White

Active 2- Way 2x6½/2x1"/passive 2x6½/2x1"/400W RMS, white

CHF 1'336.73 1336.73 CHF CHF 1'336.73 Inklusive MwSt.

CHF 1'336.73 Inklusive MwSt.

Wird für Sie bestellt

Diese Kombination existiert nicht.

In den Warenkorb

Geschäftsbedingungen
Versand: 2-3 Arbeitstage

Technical Data

Speaker Type M2M	2-Way Active Master Line Array Module
Speaker Type M2S	2-Way Slave Line Array Module

Acoustical data

Frequency Response [-6dB]	78 - 19.000 Hz
Frequency Response [-10dB]	68 - 20.000 Hz
Max SPL	126 dB per unit
HF	2x1"
Type HF	Neodymium
Voice Coil HF	1"
LF	2x6.5"
Type LF	Neodymium
Voice Coil LF	1.5"
Directivity	90x15°

Amplifier

Amp Technology	Digipro® G3
Amp Class	Class D
RMS Power HF Amp	200 W (100 W + 100 W)
RMS Power LF Amp	200 W (100 W + 100 W)
Cooling	Convection

Processor

Controller	DSP 56 bit
AD/DA Converter	24 bit/48 kHz
System Presets	9 presets (8x HF and Low-Mid corrections and 1x for service use)
Limiter	Multiband, RMS/Peak, Thermal
Crossover Frequency LF-HF	1800 Hz
Slope LF-HF	24 dB/Octave

Input

Signal Input	1x XLR fem, Bal.
Signal Output	1x XLR male, Bal.
Power Supply	400W SMPS with PSU Auto-range (110V~ and 220V~)
Power Socket	1x PowerCon In 1x PowerCon Out
Signal Input M2S	1 Custom connector

Mechanics

Housing	Polypropylen PP
Handles	2x back side
Fittings	Integrated hardware with fast lock mechanics
Splay Angles	0°- 1,5°- 3°- 4,5° - 6°- 8°- 10°- 12,5°- 15°
Width	460 mm (18.1 in)
Height	190 mm (7.5 in)
Depth	345 mm (13.6 in)
Weight M2M	7.6 kg (16.8 lbs)
Weight M2S	7.1 kg (15.7 lbs)
