dB Technologies

ES-802

Active, 1x12" und 2 Tops à je 4x3” 1200W, mono

CHF 827.94 827.94 CHF CHF 827.94 Inklusive MwSt.

CHF 827.94 Inklusive MwSt.

Wird für Sie bestellt

Diese Kombination existiert nicht.

In den Warenkorb

Geschäftsbedingungen
Versand: 2-3 Arbeitstage

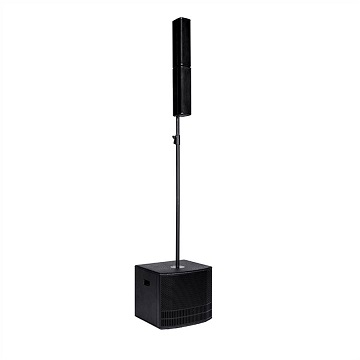

ES802 is a portable biamped sound system composed by two passive tops and one 12” subwoofer. The sub hosts a 1200 W peak power amp module with auto-range PSU. A powerful DSP manages the coverage and all the other functions of the system, making the ES802 a real gem in terms of sound performance and versatility.

Acoustical data

Frequency Response [-10dB]	37-15.000 Hz
Max SPL	124 dB
MF - HF	8x 3"
Type MF - HF	Neodymium
LF	12"
Directivity	95x65°

Amplifier

Amp Technology	Digipro® G3
Amp Class	Class-D
Power Amp Peak	1200 W

Processor

Controller	DSP 24 Bit/48 kHz
System Presets	Factory presets
Limiter	Dual Active, Peak, RMS, Thermal
Crossover Frequency LF-HF	206 Hz

Input

Mic/Instrument Channel	1x Combo (XLR/Jack) balanced/unbalanced input, 1x RCA stereo input
Link Output	1x XLR balanced output

Mechanics

Housing (Subwoofer)	15mm Black Painted Plywood
Housing (Tops)	Polypropylene PP
Handles	2x lateral side (Subwoofer)
Width (Top)	95 mm (3.74 in)
Height (Top)	360 mm (13.98 in)
Depth (Top)	137 mm (5.39 in)
Width (Subwoofer)	465 mm (18.3 in)
Height (Subwoofer)	400 mm (15.7 in)
Depth (Subwoofer)	430 mm (16.9 in)
Weight (Top)	1.9Kg – 4.19lbs
Weight (Subwoofer)	16.4Kg – 36.16lbs
