IS-5TB
Passive 2- Way, 5/1" Coaxial, 8 Ohm, black

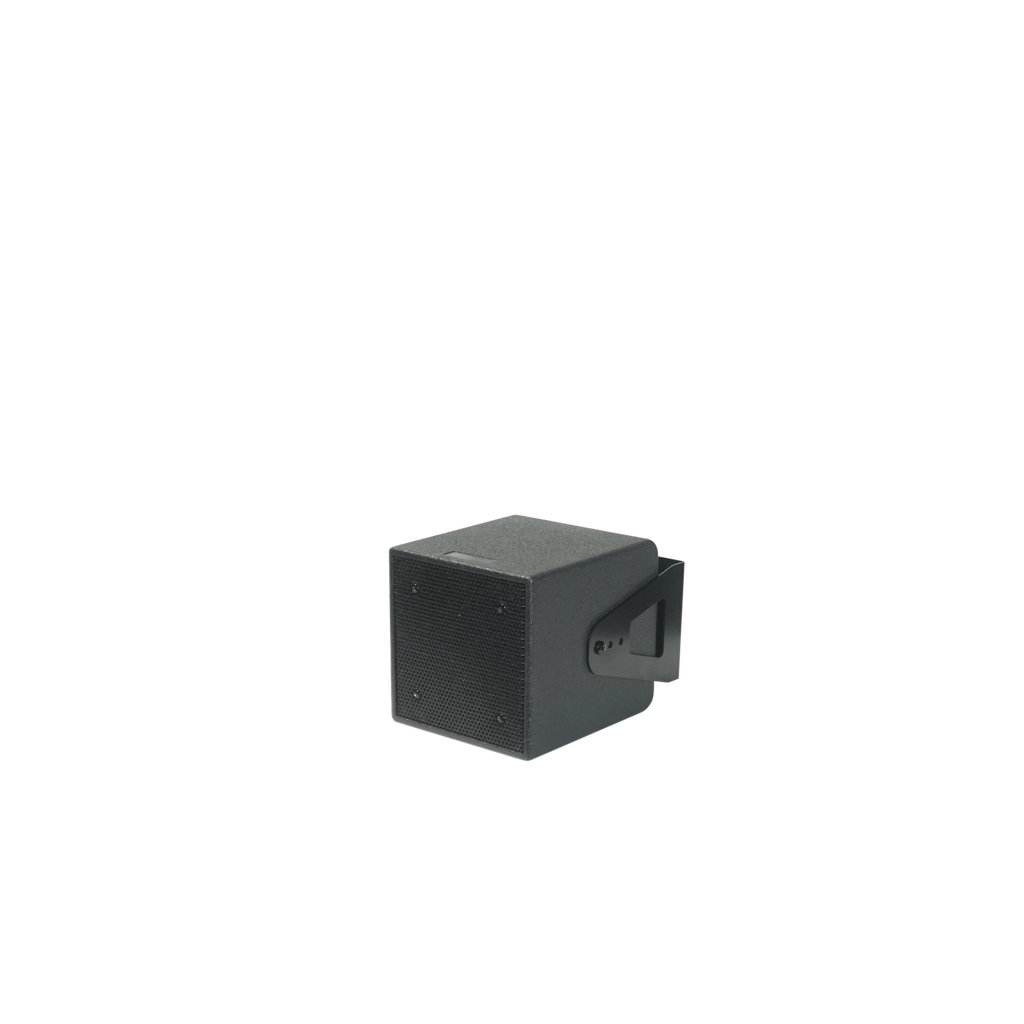

IS5T is a cube speaker designed for permanent installation.
Equipped with a 5" component, this is a simple compact cabinet that fit-in everywhere, essentially designed for high quality background music.
IS cube speakers install in a few minutes thanks to the dedicated bracket included in the package.
Needless to say the keyword here is: ease of installation and unobtrusiveness. That's why each single system in IS series comes with a smooth design with few invisible pin points, Phoenix connectors, black or white version.
Technical Data
Speaker Type | Passive Fullrange Speaker |
Acoustical data
RMS Power | 60 W |
Peak Power | 240 W |
Frequency Response [-6 dB] | 95 Hz - 18,000 Hz |
Impedance | 8 Ohm |
Sensitivity 1W@m | 92 dB |
Max SPL | 116 dB |
LF | 1x 5", 1 " v.c. Fullrange woofer |
Dispersion | 110x110° |
Input
Connections | Phoenix |
Mechanics
Housing | Plywood, water-painted coating |
Rigging points | 2x M6 threaded nut |
Accessories | bracket included |
IP rating | IP 32 |
Width | 160 mm (6.3 in) |
Height | 160 mm (6.3 in) |
Depth | 180 mm (7 in) |
Weight | 2.8 kg (6.17 lbs) |
