dB Technologies

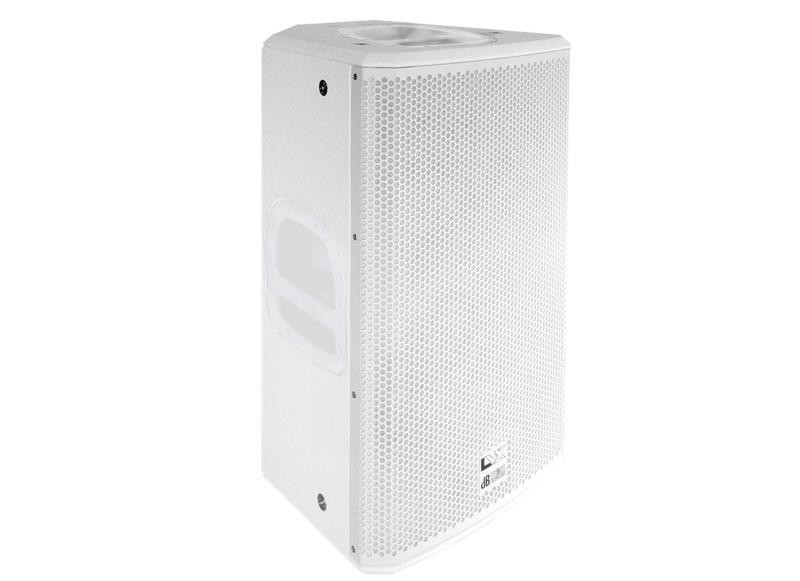

LVX-15 WHITE

https://www.mgmaudio.ch/web/image/product.template/2507/image_1920?unique=31889fb

Active 2- Way 15/1", 800W, Class D, white

CHF 920.44 920.44 CHF CHF 920.44 Inklusive MwSt.

CHF 920.44 Inklusive MwSt.

Preis auf Anfrage

Wird für Sie bestellt

Diese Kombination existiert nicht.

Geschäftsbedingungen
Versand: 2-3 Arbeitstage

The voicing of these speakers is very linear and designed to for any audio content, such as speech, background or live music, multimedia contents, etc., respecting their characteristics and dynamic response, and with a high level of performance.  The dispersion of the constant directivity horn is symmetric and rotatable in order to keep the same coverage in case of horizontal use. This is particularly valued even in case of use as a stage monitor, configuration possible thanks to the rear angle of 45° The digital amplifiers (DIGIPRO® series) are totally silent due to the low thermal dissipation and controls audio crossover, frequency response, and acoustic alignment and 2 different preset EQ.  The enclosure is made of robust 12mm plywood with a look very elegant and refined.  LVX 15 is provided with a top handle and 2 side handles to ease transport. A D36mm pole mount cup on the bottom allows all LVX speakers to be placed on poles or tripods

Two types of wall-mounting brackets are available: one for vertical installation, especially studied for live applications or truss mounting, with variable pan-tilt options (a pole mount cup is included as a stand adapter). The second for horizontal permanent installations, where you can easily change tilt position.

All models and related accessories are available in black or withe finshes.

The white installation version of all the four models comes without the pole mount cup and the handles, providing a very transparent look

Technical Data
Speaker Type 2-Way Active Speaker
Acoustical data
Frequency Response [-10dB] 49 - 20.000 Hz
Frequency Response [-6dB] 54 - 19.000 Hz
Max SPL 128 dB
HF 1"
Directivity 90 x 40°
Horn Rotatable CD Horn
LF 15"
Amplifier
Amp Technology Digipro® G2
Amp Class Class-D
Peak Power 1600 W
PRG Power 800 W
Processor
Controller DSP 24bit/48kHz
System Presets Flat, Processed
Limiter Dual Active Peak, RMS, Thermal
Crossover Frequency LF-HF 1800 Hz
Slope LF-HF 24 dB/Octave
Mechanics
Housing Multiplex
Angles Up Monitor use 45°
Handles 3 (1x top side, 1x side)
Rigging points 12 x M10
Pole mount D36 mm
Width 430 mm (16.93 in)
Height 680 mm (26.77 in)
Depth 430 mm (16.93 in)
Weight 20.7 kg (45.64 lbs)
