VIO-S115
Active, Sub, 1x15", 900W RMS

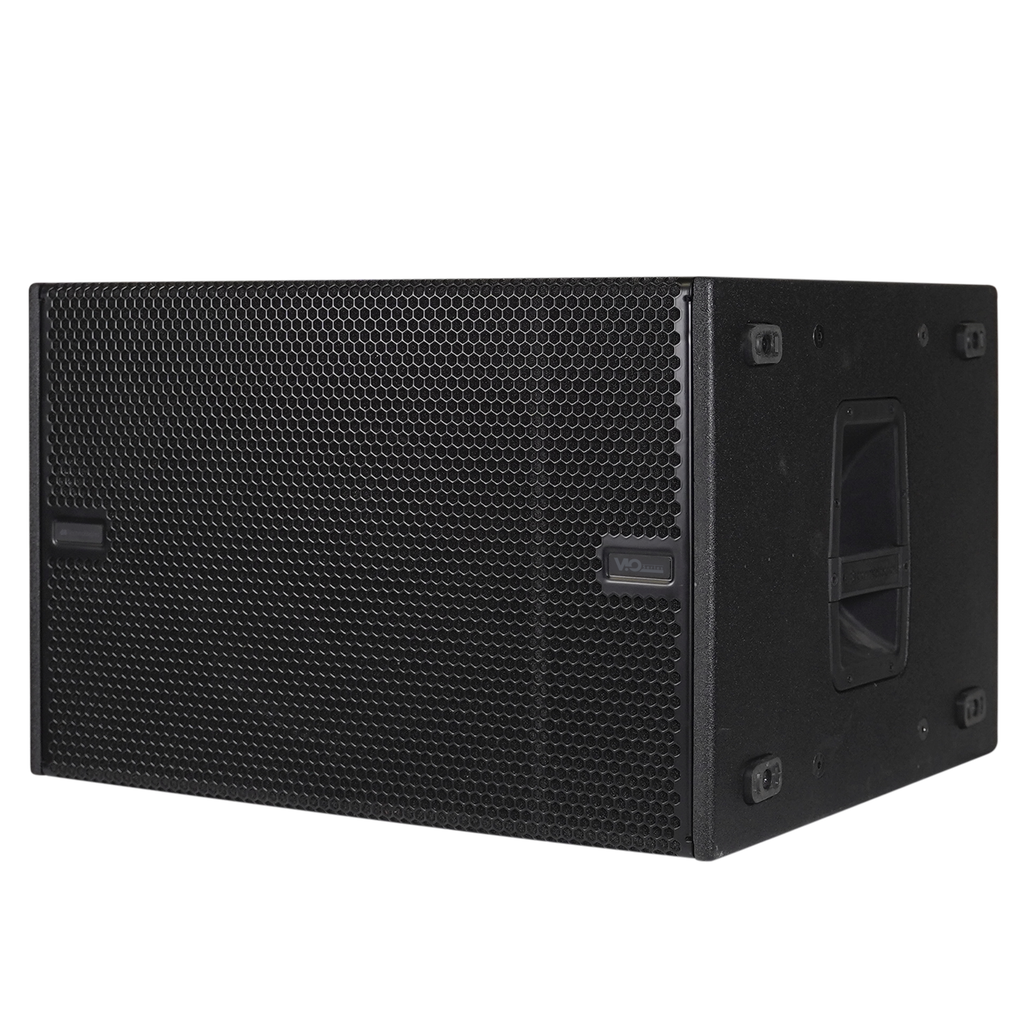

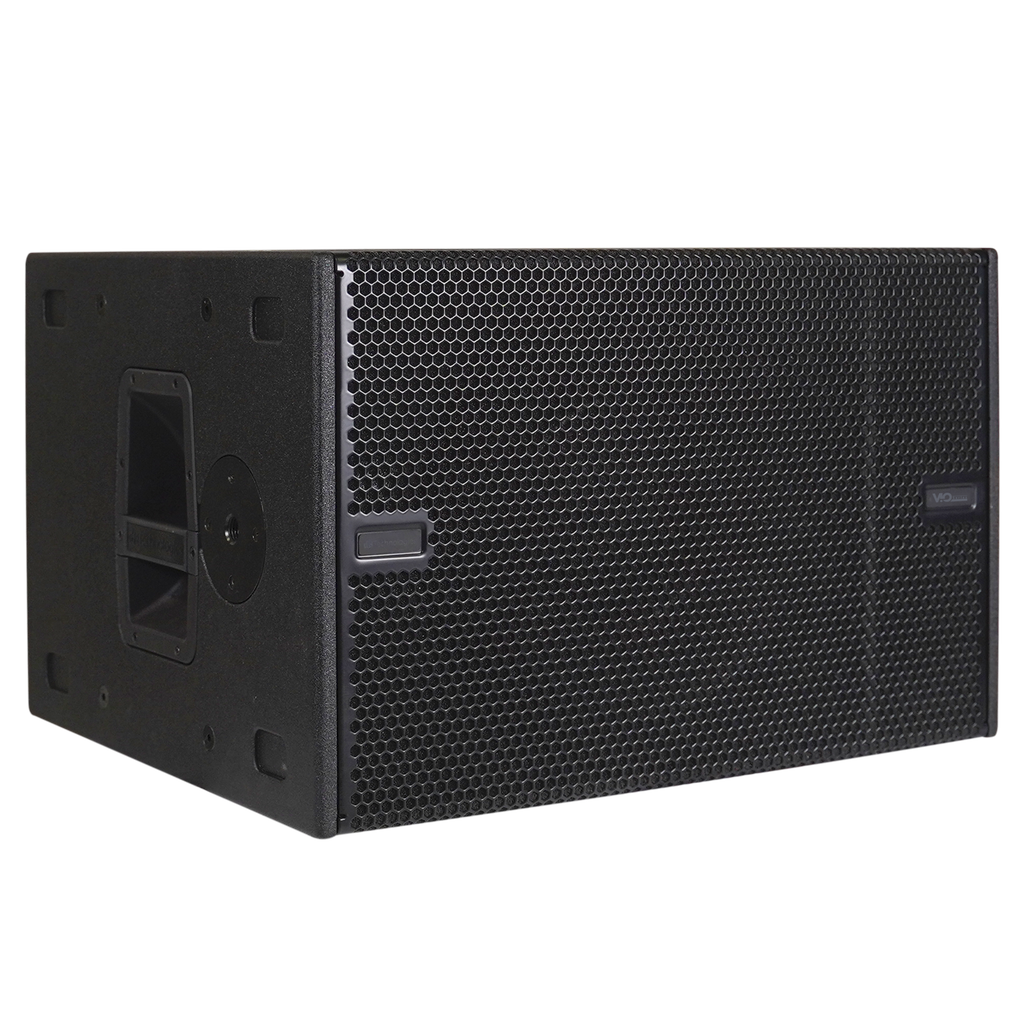

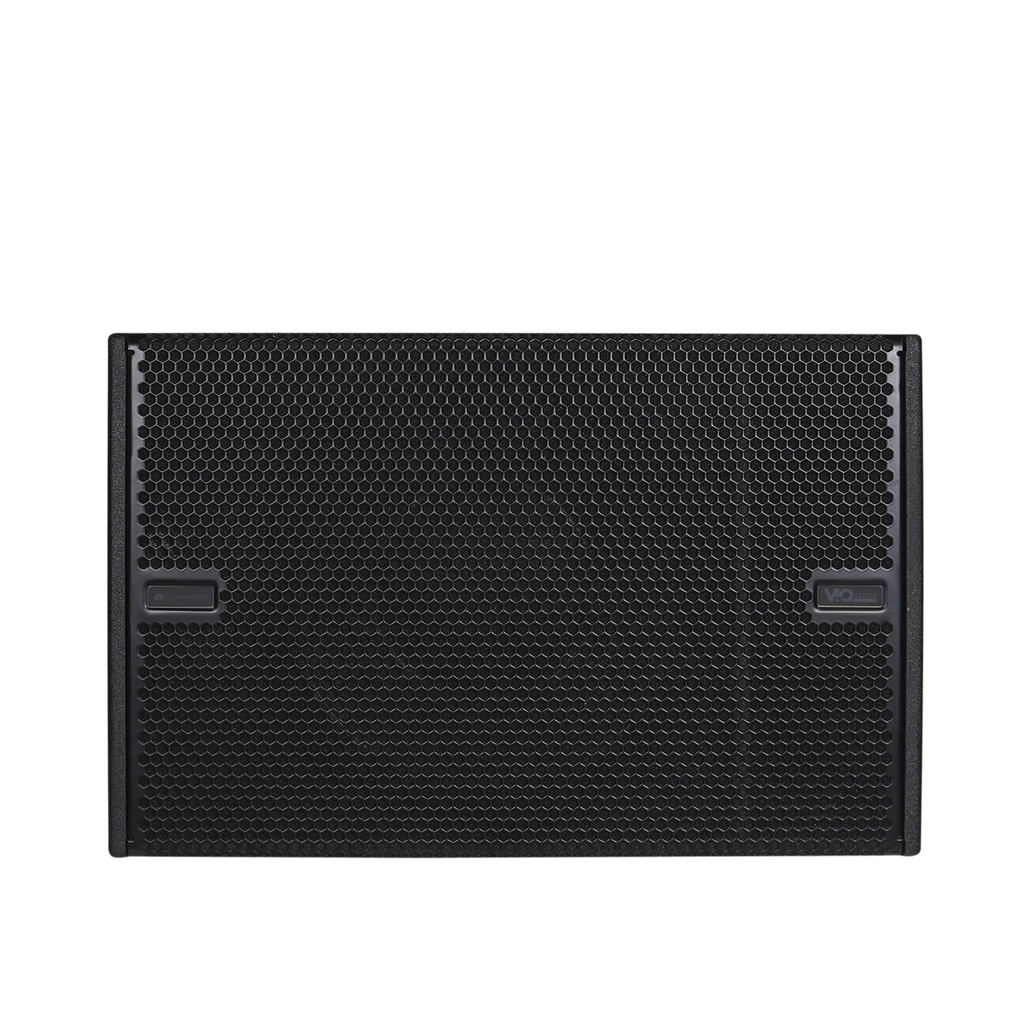

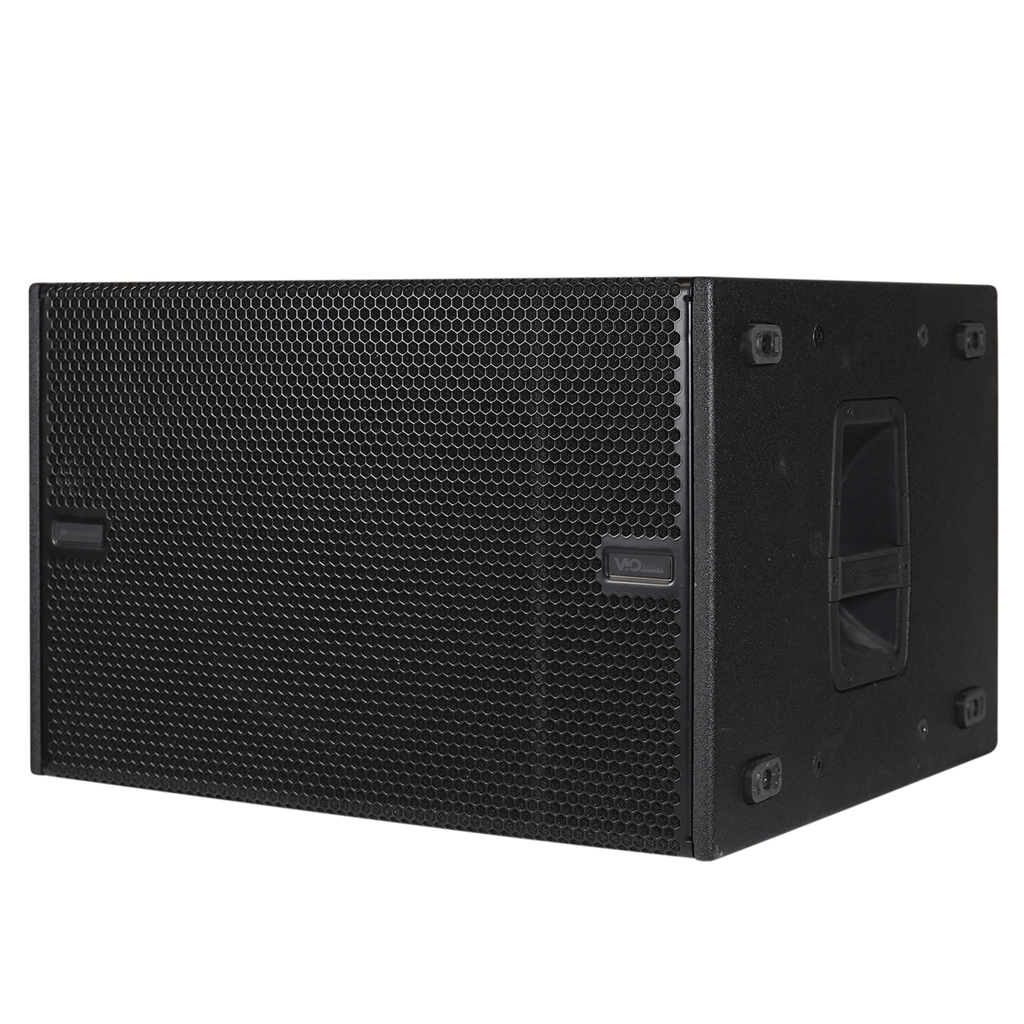

VIO S115 is a self-powered, flyable, single 15" subwoofer, with a standard frontal bass reflex acoustic configuration. It is definitely inspired by dBTechnologies popular VIO S118R subwoofer, with the advantages of being flyable.
This is the most compact VIO sub, just perfect as a complement for all VIO X full range series. The system is loaded with a 15" neodymium woofer, driven by a 900 W RMS Digipro G3 amp, which allows for complete networkability with all other speakers in VIO family. The cabinet is provided with M10 flying points and M20 pole mounts on both top and side of the box, so the sub allows for horizontal or vertical use, when flown or ground stacked. Two different flybars and sub brackets open for tons of possible configurations with VIO X206 boxes when in line array mode, a single flybar allowing for a simple set up, and a double flybar, which allows to fly multiple sub arrays and top arrays together, and many more configurations that will suit any installation requirements.
Technical Data
Speaker Type | Active Bassreflex Subwoofer |
Acoustical data
Frequency Response [- 6 dB] | 40 Hz - (user frequency LPF) |
Frequency Response [- 10 dB] | 36 Hz - (user frequency LPF) |
Max SPL | 134 dB |
LF | 1x 15" |
Voice Coil LF | 4" |
Directivity | Omnidirectional |
Amplifier
Amp Technology | Digipro® G3 |
Amp Class | Class D |
RMS Power | 900 W |
Peak Power | 1800 W |
Cooling | Convection |
Processor
Controller | DSP 32 bit |
AD/DA Converter | 24 bit/96 KHz |
Limiter | RMS, Peak, Thermal |

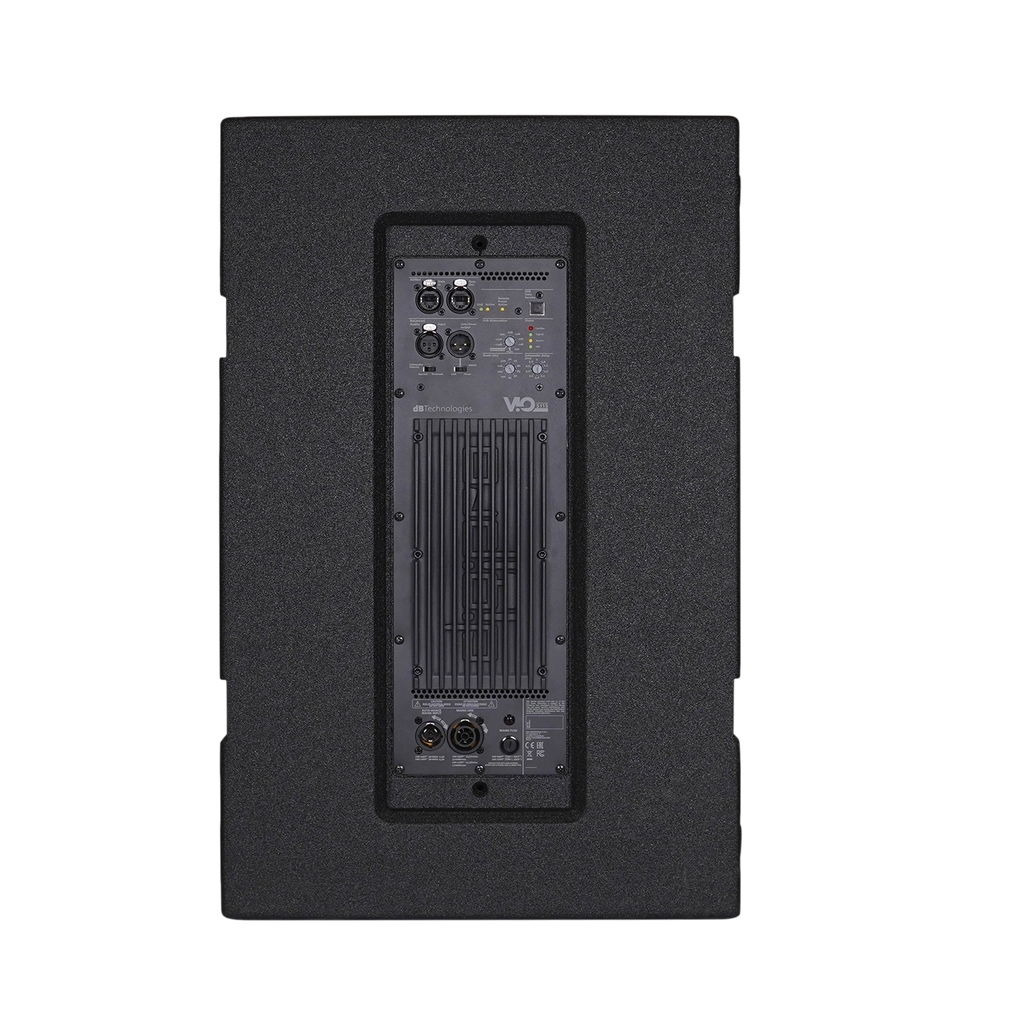

Input
Signal Input | 1xXLR balanced 1xRJ45 LINK (RDNet) |
Signal Output | 1x XLR balanced 1xRJ45 LINK (RDNet) |
Power Socket | 1xPowerCON TRUE1 IN1xPowerCON TRUE1 OUT |
Controls | 1x Input Sensitivity Rotary Encoder1x X-Over Selection Encoder1x Delay Selection Encoder1x Polarity Selection Switch1x X-Out Mode Selection Switch1x On LED1x Status LED1x Signal LED1x Limiter LED3x RDNet Status LED |
Mechanics
Housing | Multiplex plywood Polyurea painted |

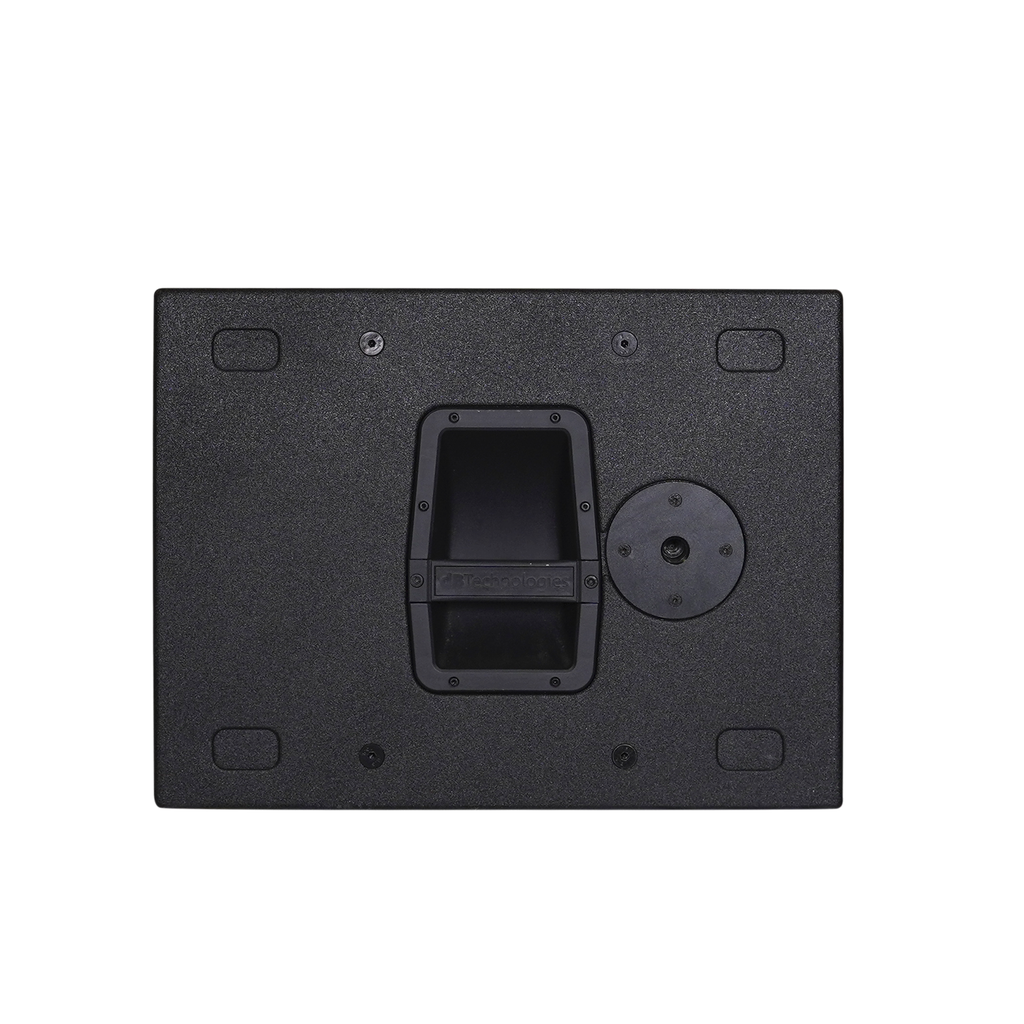

Pole Mount | 1x M20 on Top, 1x M20 on Right Side |

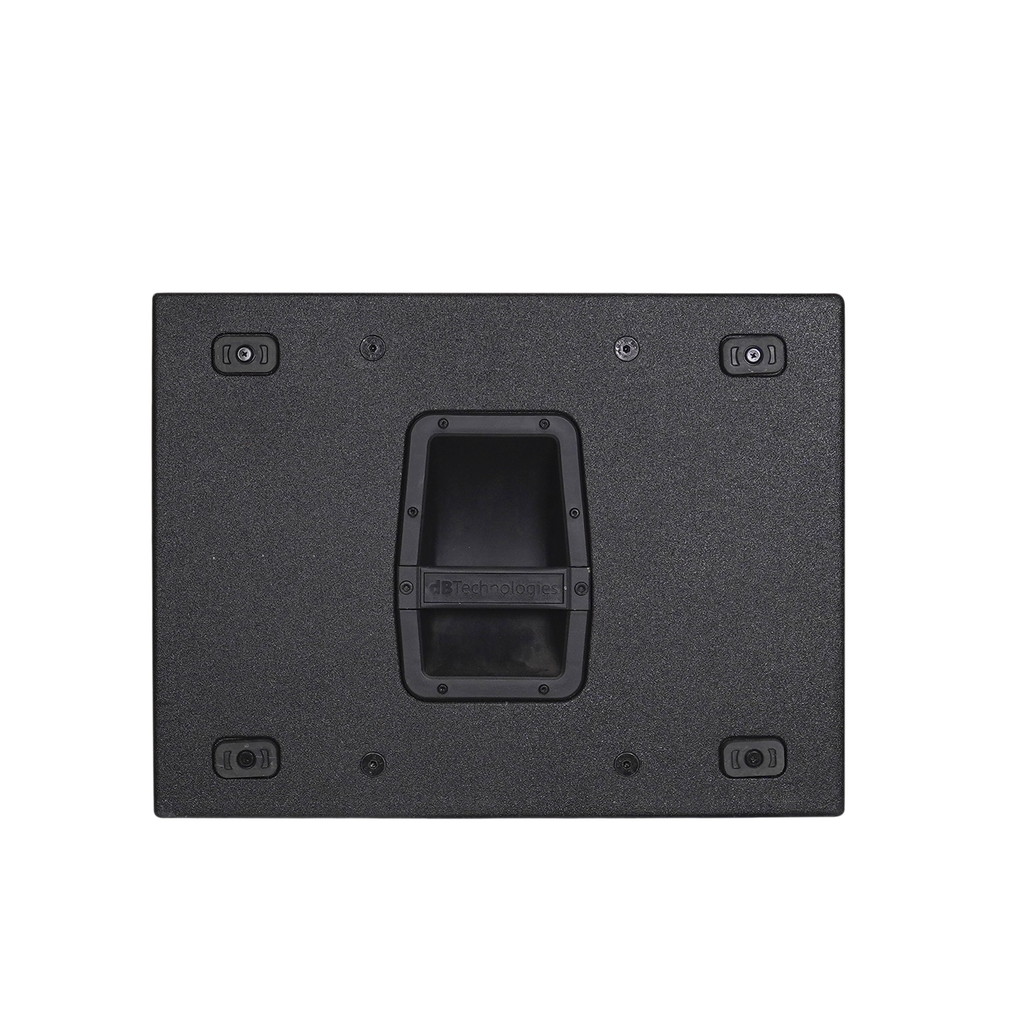

Handles | 1x Side Aluminium |
Rigging Points | 16x M10 |
Width | 650 mm (25.6 in) |
Height | 420 mm (16.5 in) |
Depth | 550 mm (21.7 in) |
Weight | 32.8 kg (72.3 lbs) |
