LMX48

Up to 38 audio input channels and 44 output channels directly routable. 16 input routers with 4 failover levels each can be matrix mixed into 8 LAKE MESA or 4 LAKE CONTOUR channels with up to 12 processed outputs.

Console switching/mixing with Input Scenes. Recall Scene through front panel, Lake Controller or a custom-made switching device through the internal GPI port

High-performance Lake digital audio system processor for unparalleled loudspeaker management and system control

Full system control via Lake Controller touch-screenoptimized software application

Raised Cosine Equalization plus linear phase, classic, FIR crossover and Lake XP capability including dedicated FIR for array optimization and multiband/limiter compressor for ultimate sound-shaping abilities

Configurable Lake groups offers simultaneous non-destructive parameter adjustments across all Lake platforms

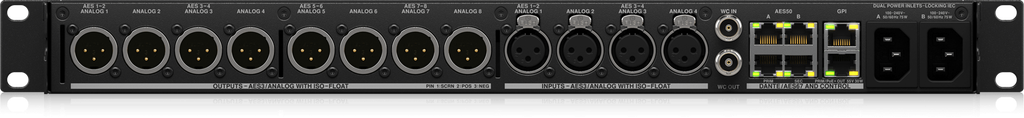

4 x Neutrik XLR providing 4 analog inputs with Iso-Float ground isolation OR 2 x AES3 inputs with up to 192 kHz sampling frequency with individual sample rate converter per AES3 input in addition to 2 extra analog inputs

8 x Neutrik XLR providing 8 analog outputs with Iso-Float ground isolation OR 4 x AES3 outputs with up to 192 kHz sampling frequency in addition to 4 extra analog outputs.

5 x RJ45 ports provide 8 x 8 channels of dual redundant Dante/AES67 interfaces and remote configuration via Lake Controller and Dante Controller software. One of the ports has PoE+

2 x RJ45 ports provide 2 x AES50 individual interfaces

1 x RJ45 port providing GPI

2 x BNC providing Word clock I/O with 75 Ohm selectable termination

High-quality A/D and D/A 24-bit conversion and 96 kHz internal sampling frequency

8 different clock sources

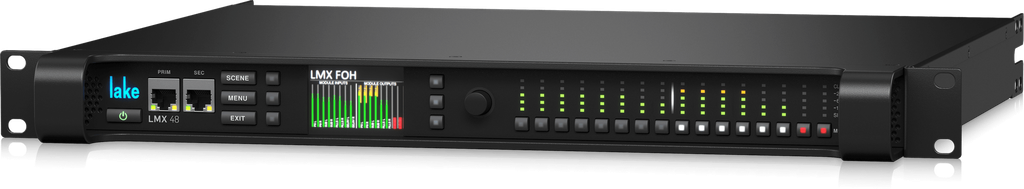

High contrast full color IPS display with 6 dynamic buttons and rotary encoder for navigation

Dedicated buttons for Menu, Exit and Scene selection activation

Front panel accessible dedicated module input and output mute buttons and LED metering

Rugged 1U rackmount chassis for touring applications

100 user Frame presets for simple and efficient system configuration and setup

Redundant universal 85- 264 V power supply served through locking IEC connectors
