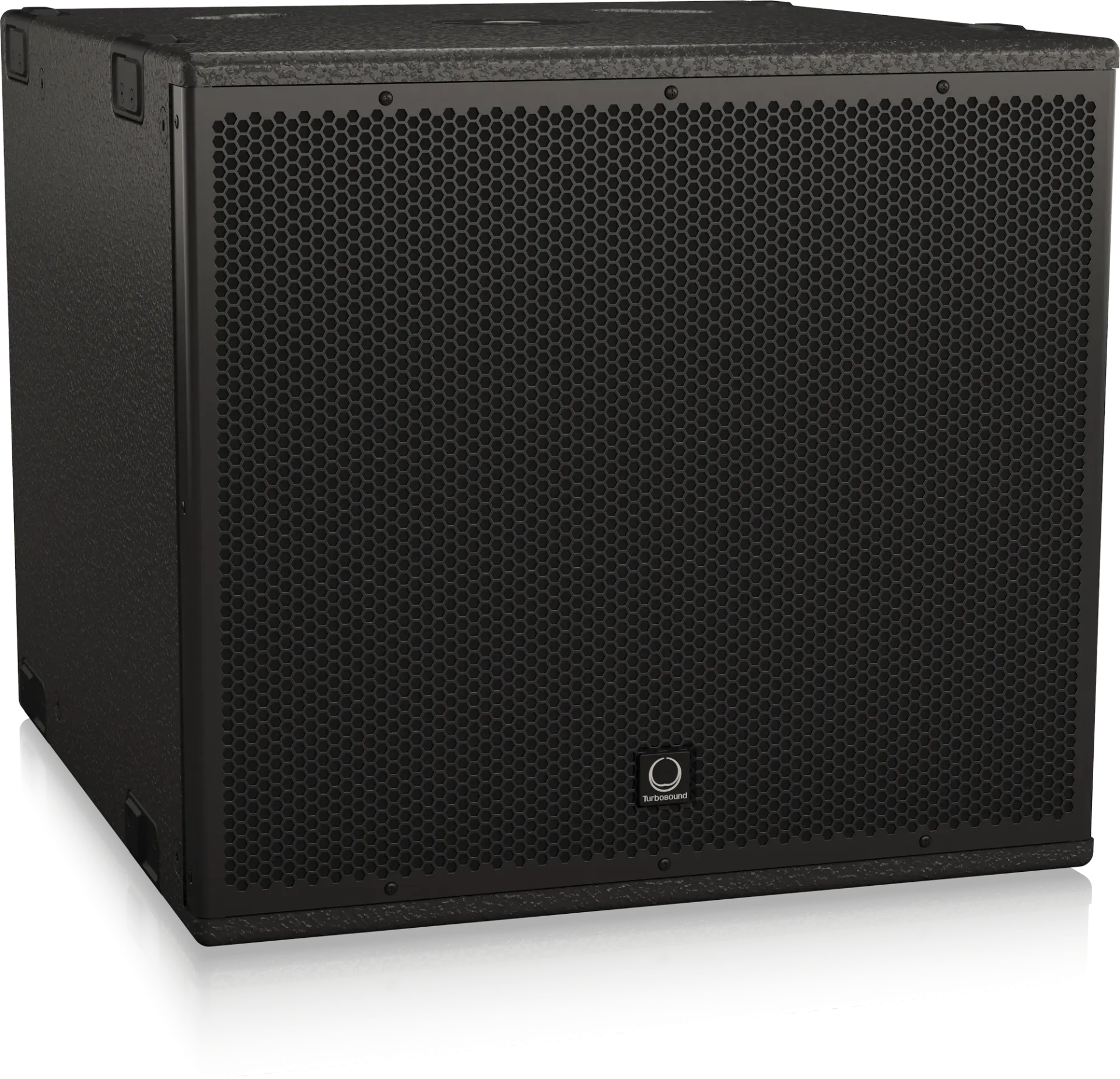

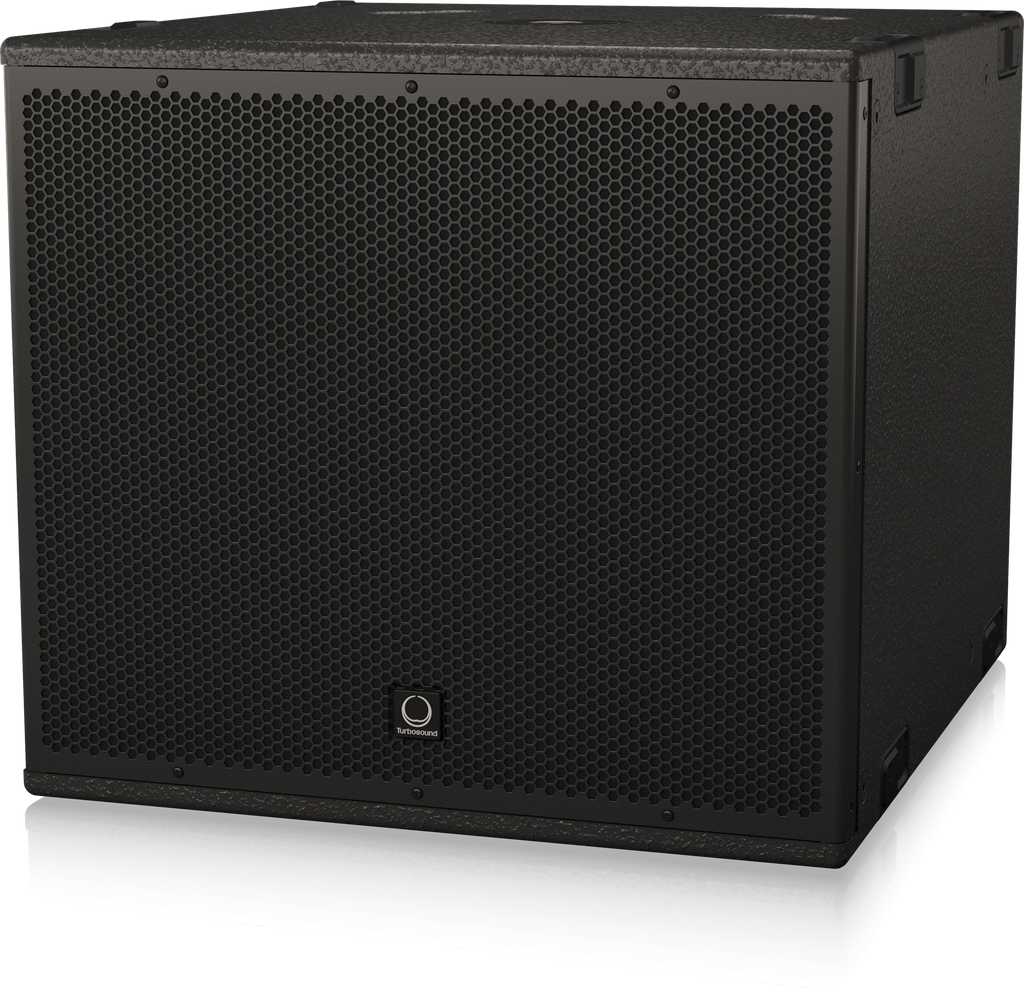

3000 Watt 15" Front Loaded Subwoofer with Klark Teknik DSP Technology and ULTRANET Networking
Product Features
-
Front loaded powered subwoofer for portable PA and installation applications
-
3,000 Watt power featuring Klark Teknik Class-D technology
-
Klark Teknik Digital Signal Processing for total system control
-
ULTRANET digital audio networking connects to mixers and other sources
-
Double suspension 15" low frequency driver with inside/outside wound coil
-
Fully featured user interface with LCD display for ease of navigation
-
PC remote control software downloadable at turbosound.com
-
Low distortion bass reflex port design
-
18 mm (3/4") birch plywood enclosure with hard wearing semi matt black paint finish
-
Integral M10 rigging points for ease of installation
-
35 mm pole mount to support satellite speaker
-
Mains input on industry standard twist-lock power connector
NuQ115B-AN

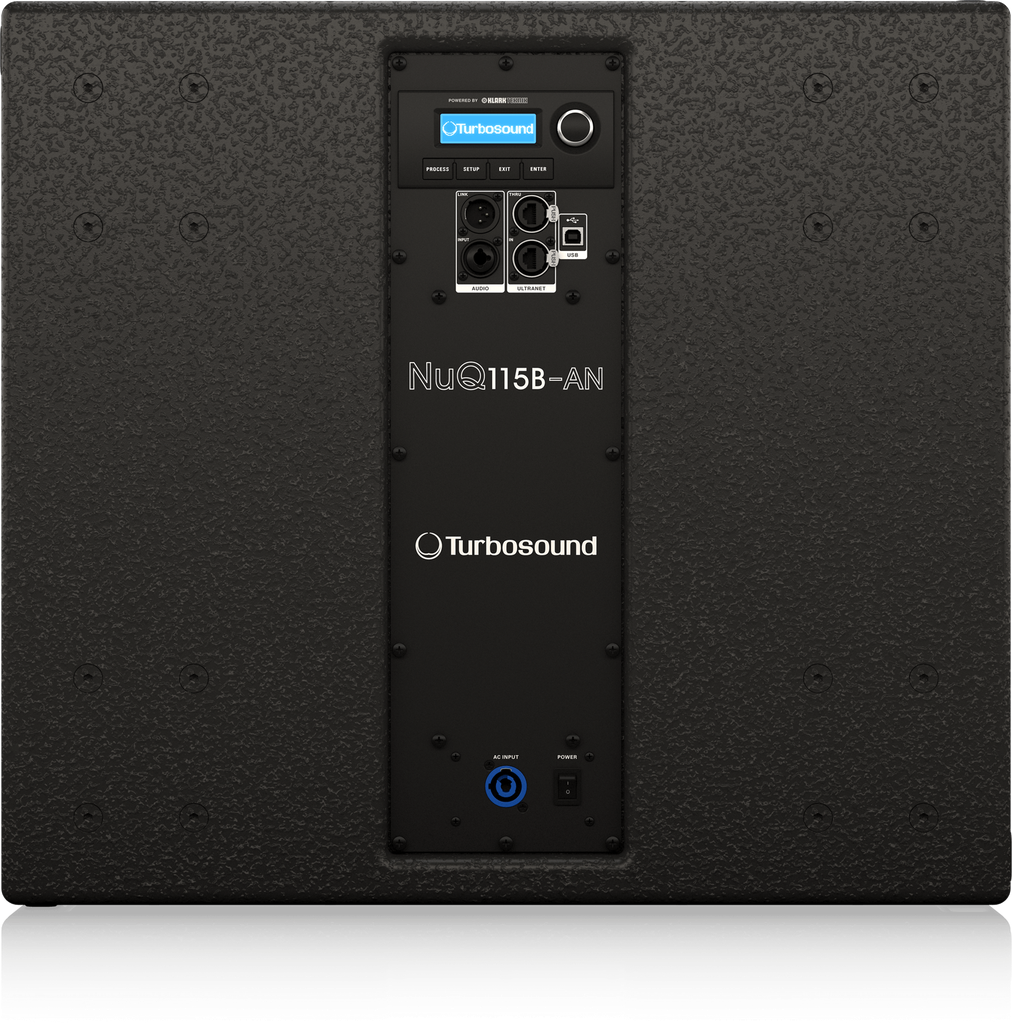

On the rear panel of the amplifier module, the user interface’s LCD display and single rotary encoder provide intuitive access to: position compensation, user EQ control, crossover alignment and signal routing features. In addition to the balanced XLR input, an XLR output is provided for daisy-chaining more active subwoofers, or for use with active full range satellite speakers. An onboard USB port provides access for remote control of the NuQ115B-AN via PC computer, as well as DSP firmware updates.
ULTRANET connectivity is provided by two locking RJ45 connectors. Up to 16 independent channels of 24-bit digital audio and control data are transmitted via a single CAT5 cable between compatible digital devices – including mixers, I/O stage boxes, powered loudspeakers and personal monitoring systems. Simplified cable routing and ease of setup translate directly into significant time saved during installation.

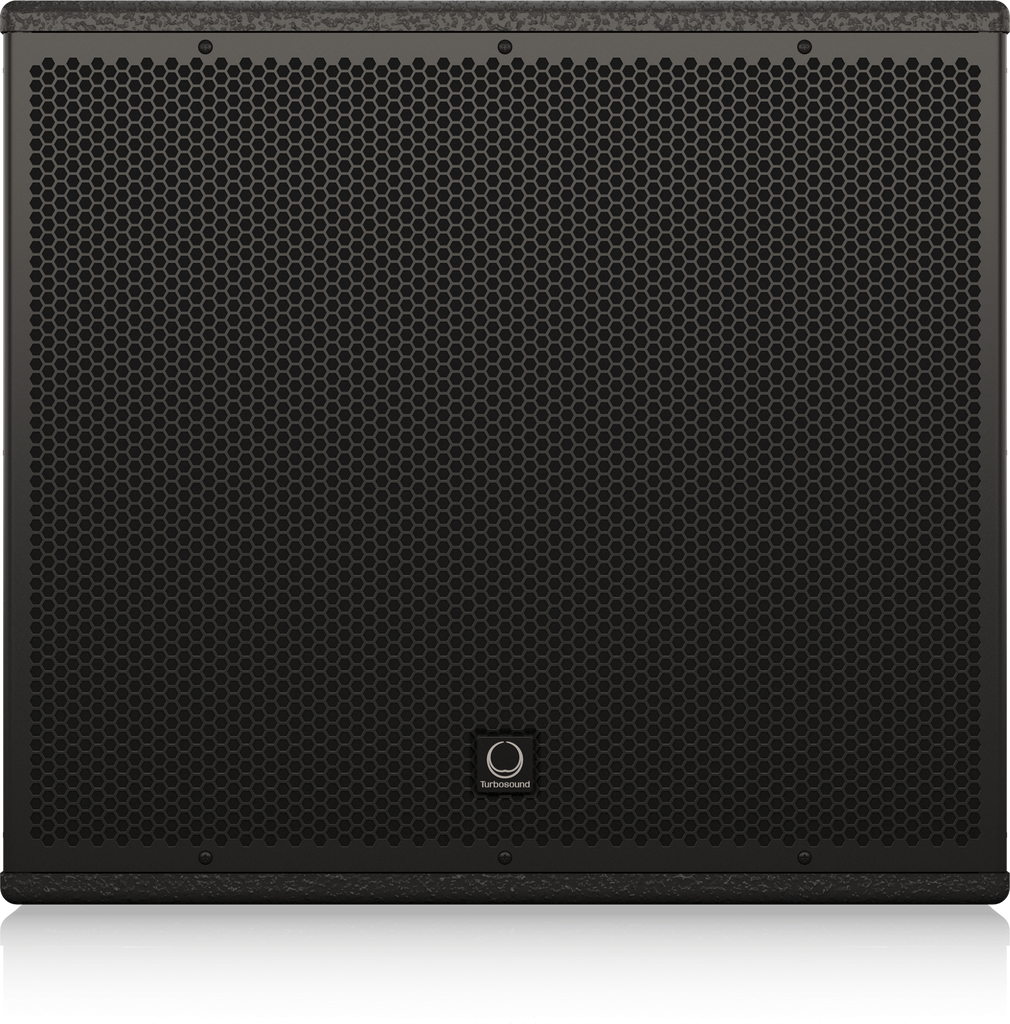

Finished in a highly durable semi matt black paint, the cabinet is constructed from 18 mm (¾ ") birch plywood and includes – and includes a rugged powder coated perforated steel mesh grille backed with reticulated foam; multiple M10 threaded rigging points; a 35 mm pole socket for satellite speaker mounting; integrated carry handles for convenient transport – and high impact interlocking corners for ground stacking stability. Mains power input is provided via an industry-standard twist-locking power connector.
On the rear panel of the amplifier module, the user interface’s LCD display and single rotary encoder provide intuitive access to: position compensation, user EQ control, crossover alignment and signal routing features. In addition to the balanced XLR input, an XLR output is provided for daisy-chaining more active subwoofers, or for use with active full range satellite speakers. An onboard USB port provides access for remote control of the NuQ115B-AN via PC computer, as well as DSP firmware updates.
ULTRANET connectivity is provided by two locking RJ45 connectors. Up to 16 independent channels of 24-bit digital audio and control data are transmitted via a single CAT5 cable between compatible digital devices – including mixers, I/O stage boxes, powered loudspeakers and personal monitoring systems. Simplified cable routing and ease of setup translate directly into significant time saved during installation.
Finished in a highly durable semi matt black paint, the cabinet is constructed from 18 mm (¾ ") birch plywood and includes – and includes a rugged powder coated perforated steel mesh grille backed with reticulated foam; multiple M10 threaded rigging points; a 35 mm pole socket for satellite speaker mounting; integrated carry handles for convenient transport – and high impact interlocking corners for ground stacking stability. Mains power input is provided via an industry standard twist-locking power connector.
Specification
| Frequency Response |
45 Hz – 150 Hz ±3 Db |
| Nominal Dispersion |
Half Space |
| Maximum SPL |
135 dB peak |
| Crossover Type |
Active |
| Transducers |
1 x 15" (387 mm) LF driver |
| Limiter |
Peak and rms |
Amplifier
| Maximum Output Power* |
3,000 W |
| Type |
Class-D |
| Protection |
Short circuit, thermal |
Connectors
| Input/link |
1 x Combo Jack/XLR 1 x XLR |
| Ultranet input/link |
2 x RJ45 |
| Mains Supply |
Industry-standard twist-lock power 20A† |
Controls
| DSP |
Rotary push-encoder and level control |
User DSP Functions
| Factory EQ Presets |
Positioning, Sound mode |
| Display |
LCD 128 x 32, blue, backlit |
| Delay |
0 - 300 ms |
| Equalisation |
High and low shelving EQ 2 x parametric EQ |
| Limiter |
Zero attack input limiter |
| Presets |
20 total presets, 19 user-definablenable |
| Crossover |
Low Pass L-R 24 dB/oct |
| Protection |
Lock-out function for all settings |
Ultranet Digital Network
| Digital processing | |
| System | |
| Cabling |
Power Supply
| Power consumption |
180 W @ 1/8 max power |
| Voltage (fuses) |
Enclosure
| Dimensions HWD |
519 x 579 x 620 mm (20.4 x 22.8 x 24.4") |
| Net weight |
37 kg (81.5 lbs) |
| Construction |
18 mm (5/8") birch plywood |
| Finish |
Semi matt black paint |
| Grille |
Powder coated perforated steel |
| Flying hardware |
M10 x 16 points |
*independent of limiters and driver protection circuits
† Only qualified personnel are allowed to modify the AC-Main cord and to adhere to all applicable national standards.
