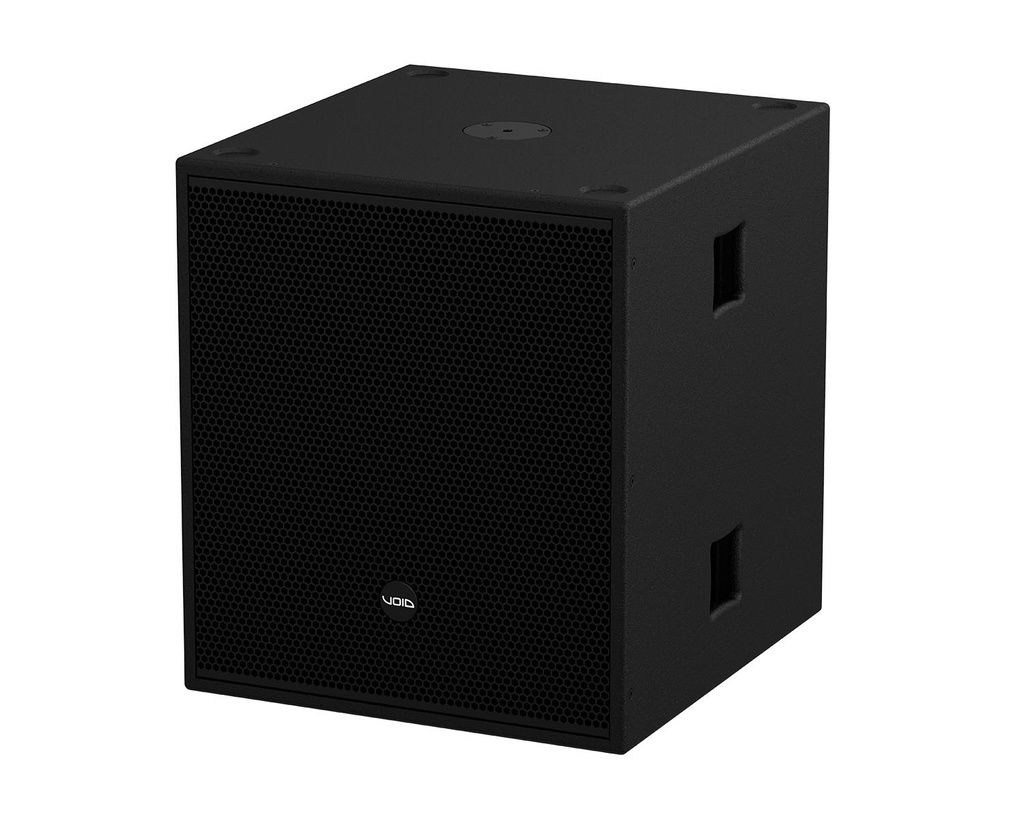

STASYS 118 WH

High Yield, State of the Art Package

Substantial research and development has resulted in a high-yield, state of the art package; inspired by traditional principles which have been enhanced through contemporary methodology and unparalleled levels of attention to detail.

Optimally Damped, Minimal Mass Cabinet

Optimised brace positioning and minimised destructive nodal conditions are the result of extensive resonance mapping; creating a structurally impressive housing with minimal cabinet colouration and improved output. Perfect for large scale touring.

Key Features

• 1200 W AES power handling
• Optimally damped, minimal mass cabinet
• 18” neodymium low frequency driver with 4" coil
• 18 mm birch plywood construction

Full Specifications

• Frequency response: 40 Hz - 200 Hz ±3 dB
• Efficiency¹: 98 dB 1W/1m
• Crossover points: 70 Hz - 160 Hz, 24 dB/oct
• Nominal impedance: 8 Ω
• Power handling²: 1200 W AES
• Maximum output³: 128 dB cont, 134 dB peak
• Driver configuration: 1 x 18” LF
• Dispersion: Array dependent
• Connectors: 2 x 4-pole speakON™ NL4
• Weight: 47 kg (103.6 lbs)
• Enclosure: 18 mm birch plywood
• Finish: Textured ‘TourCoat’ polyurea
• Grille: Perforated steel with foam filter

¹ Measured in half space ² AES2 - 1984 compliant ³ Calculated
