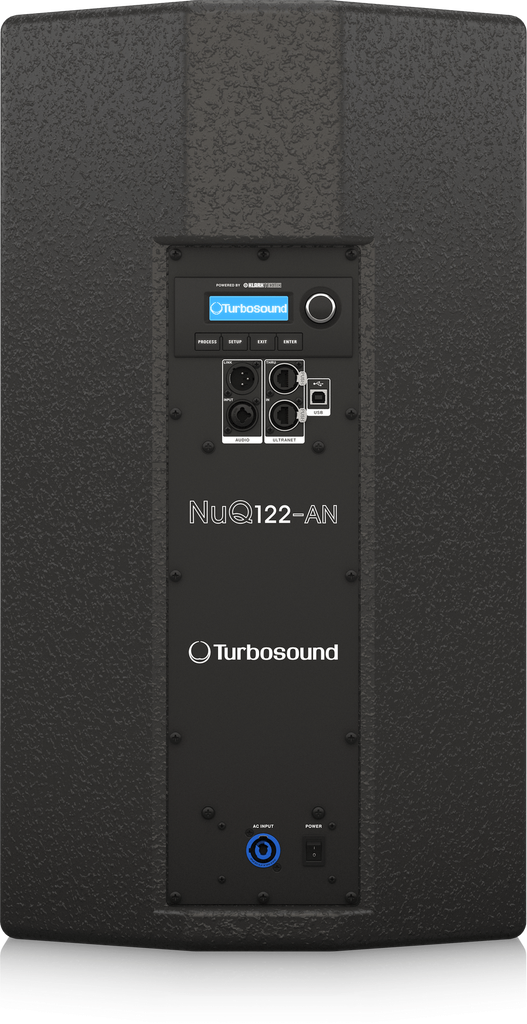

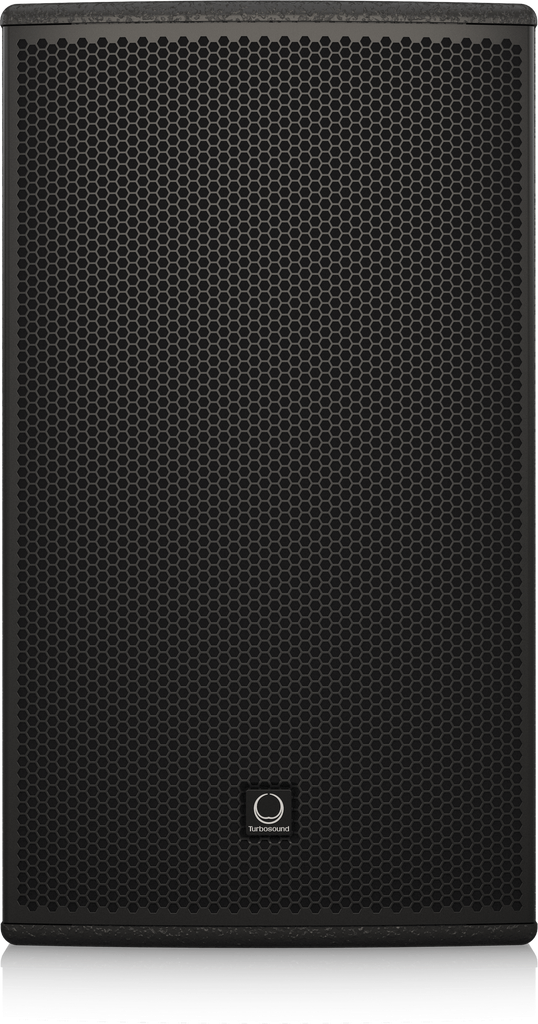

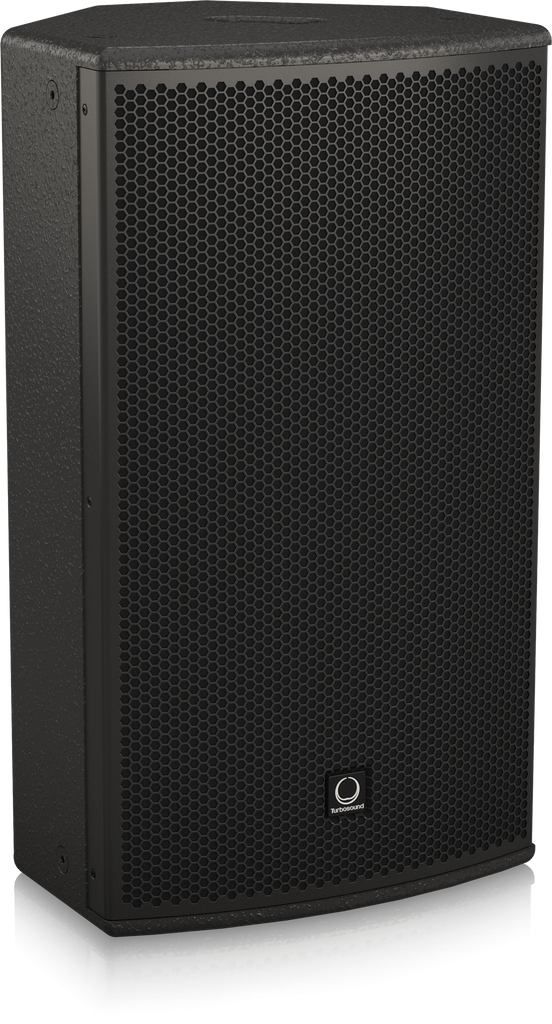

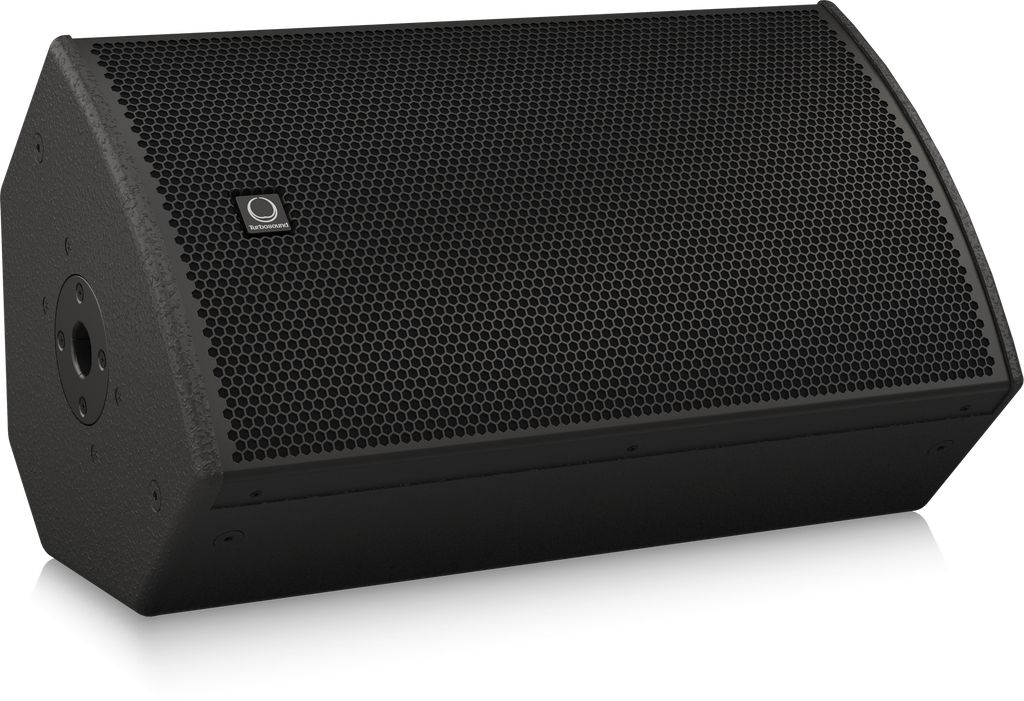

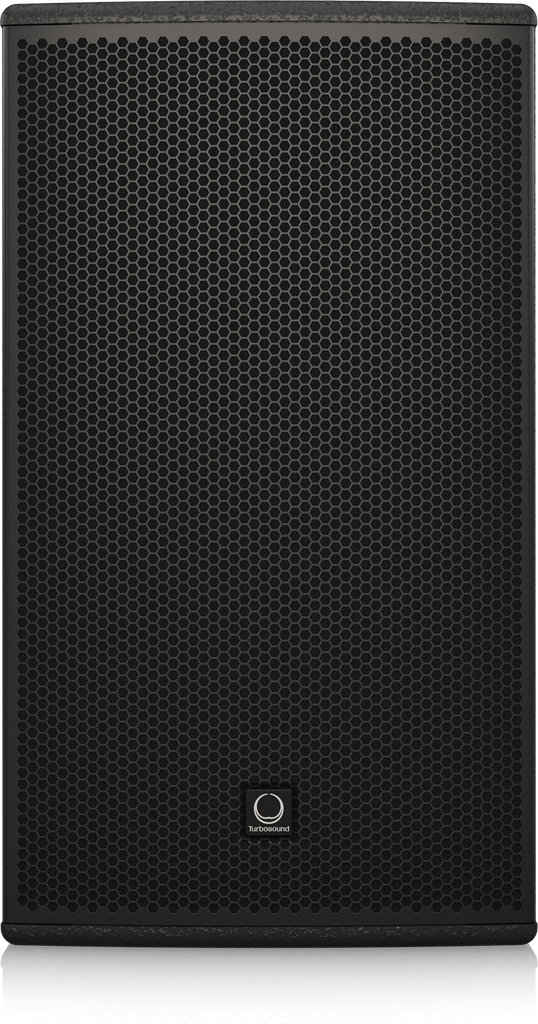

NuQ-122-AN
Active 2-way, 12/1", 2500W, 70x70°, Klark DSP, Ultranet
Frequency Response |
55 Hz – 18 kHz ±3 dB |
Nominal Dispersion |
70° H x 70° V @ -6 dB points |
Maximum SPL |
131 dB peak |
Crossover Type |
Active |
Transducers |
1 x 12" ( 315.5) LF driver |
Limiter |
Independent HF, LF, peak and rms |
Amplifier
Maximum Output Power* |
2,500 W |
Connectors
Input/link |
1 x Combo Jack/XLR 1 x XLR |
Ultranet input/link |
2 x RJ45 |
Mains Supply |
Neutrik powerCON 20A† |
Controls
DSP |
Rotary push-encoder and level control |
User DSP Functions
Factory EQ Presets |
Positioning, Sound mode, FBQ |
Display |
LCD 128 x 32, blue, backlit |
Delay |
0 - 300 ms |
Equalisation |
High and low shelving EQ 2 x parametric EQ |
Limiter |
Zero attack input limiter |
Presets |
20 total presets, 19 user-definable |
Crossover |
High Pass L-R 24 dB/oct |
Protection |
Lock-out function for all settings |
Ultranet Digital Network
Digital processing | |
System | |
Cabling |
Power Supply
Power consumption |
90 W @ 1/8 max power |
Voltage (fuses) |
Enclosure
Dimensions HWD |
656 x 374 x 340 mm (25.8 x 14.7 x 13.4") |
Net weight |
20.2 kg (44.5 lbs) |
Construction |
15 mm (5/8") birch plywood |
Finish |
Semi matt black paint |
Grille |
Powder coated perforated steel |
Flying hardware |
M10 x 8 points |
