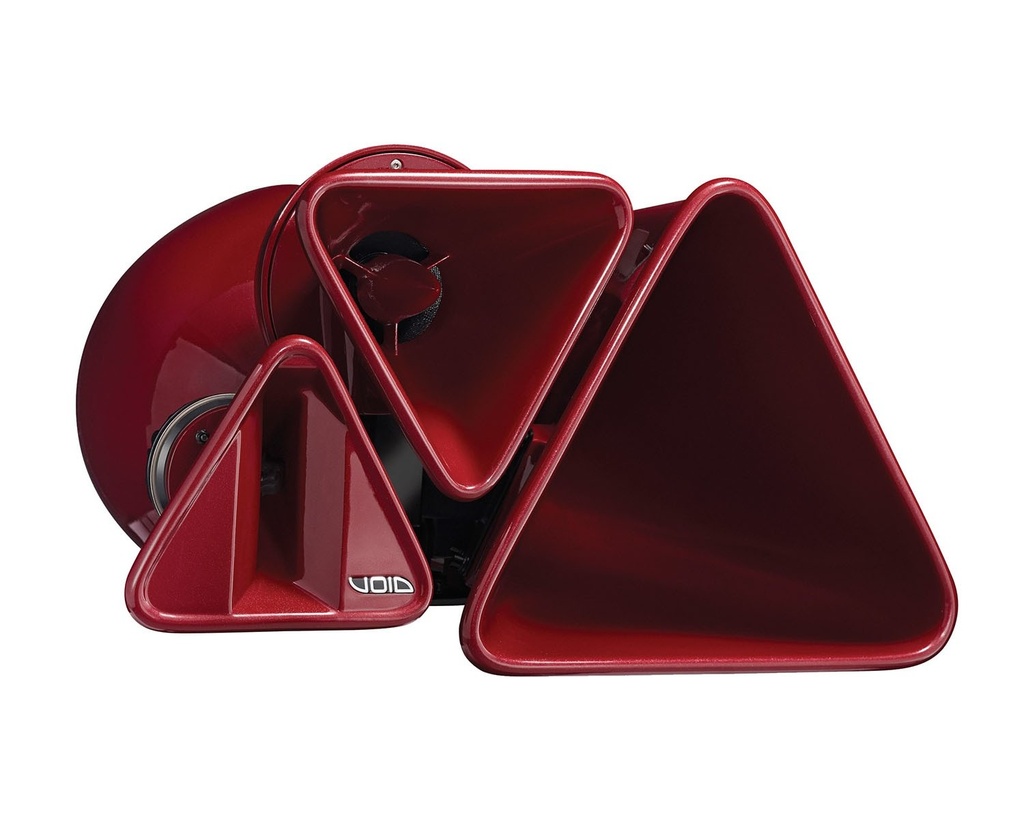

Tri Motion
Passive 3-way, 15/8/1.5", 8/8ohm, 850W AES, 90x60°
Professional audio that looks as good as it sounds.
Remarkable, Controlled Performance
The aesthetically captivating Tri Motion is perfect for spaces requiring a sound system with distinctive designs and demonstrated excellence. A cornerstone of the Air series, the Tri Motion consistently delivers remarkable and controlled performance.
Compelling Design
The compelling fibreglass composition ensures low levels of resonance for cutting edge performance. Frequently utilised in high impact nightclubs, restaurants, style-led bars and VIP rooms that require the finest reproduction available.
Key Features
- Asymmetric waveguides for enhanced pattern control
- Low resonance fibreglass composite construction
- Integrated flying and mounting system
- Optional floor stand or flying bracket
Full Specifications
- Frequency Response: 120 Hz - 20 kHz ±3 dB
- Efficiency1: LF: 107 dB 1W/1m, HMF: 110 dB 1W/1m
- Crossover Points: LF: 120 Hz and 500 Hz, HMF: 500 Hz - Passive 1.4 kHz
- Nominal Impedance: LF: 8 Ω, HMF: 8 Ω
- Power Handling2: LF: 700 W AES, MHF: 250 W AES
- Maximum Output3: 135 dB cont, 141 dB peak
- Driver Configuration: 1 x 15” LF, 1 x 8” MF, 1 x 1.5” HF compression driver
- Dispersion: 90°H x 60°V (asymmetrical)
- Connectors: 2 x 4-pole speakON™ NL4
- Weight: 47.1 kg (103.8 lbs)
- Enclosure: Fibreglass composite
- Mounting: Integral mounting system
- Colour: Custom colours available upon request
1 Measured in half space 2 AES2 - 1984 compliant 3 Calculated
