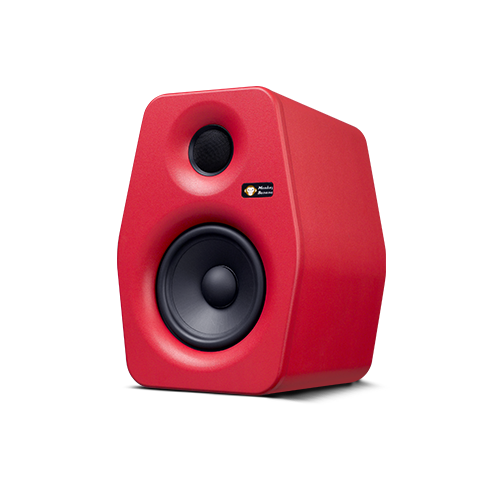

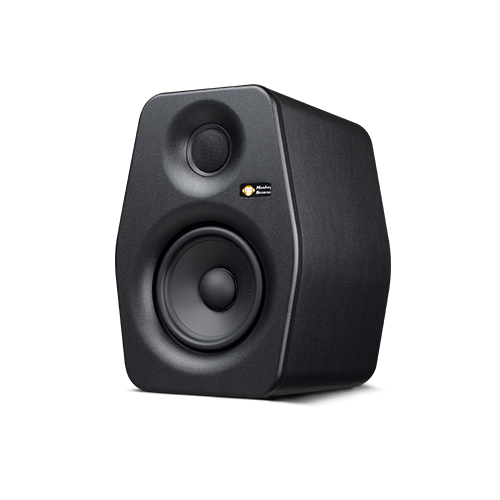

Monkey Banana
Turbo 5
active studio monitor
Turbo 5 is an active studio monitor and an ideal solution, when a smaller model is an attractive option. The digital bi-amp-driven loudspeaker is great for perfect mixes and mastering in small to medium monitoring environments. The Turbo 5 is the ideal monitoring solution for professional recording studios. Or do you need accurate control in the broadcasting studio? No problem with the Turbo 5. Ambitious gamers dive into the acoustic gaming world with even more realism. Thanks to the well thought out accessories, the Turbo 5 is also the perfect monitoring solution as a fixed installation in bars, restaurants, shops or in the office.
The application fields for near field monitoring with the small Turbo 5 are extremely broad. A 5.25” woofer with a magnetically shielded polypropylene/ceramic membrane is combined with a 1” silk tweeter. The amplification power of the bi-amp module is 50 watts for the low-end frequency range and 30 watts for the high-end frequency range.
| Woofer: | 5 1/4-inch magnetically shielded polypropylene / ceramic membrane |
| Tweeter: | 1-inch silk dome tweeter |
| Frequency response: | 55Hz - 30kHz |
| HF - Level: | -6dB ~ +6 dB variable at 10kHz |
| LF - Level: | -6dB ~ +6 dB variable at 100Hz |
| Crossover frequency: | 3kHz |
| LF - Amplifier Power: | 50W |
| HF - Amplifier Power | 30W |
| Signal HF / LF: | 90dB / 95dB |
| THD + N @ Rated Power HF / LF: | 0.02% / 0.05% |
| Inputs: | XLR/TRS - Neutrik® Combo-jack, RCA input, S/PDIF - RCA input for digital signal |
| Outputs: | S / PDIF - RCA jack for digital signal thru |
| Input Select: | Analog or Digital |
| Channel selection: | Left or Right (Digital input mode only) |
| Input Impedance: | 20 kOhm balanced, 10 kOhm unbalanced |
| Input Sensitivity: | +4 dBu (Balanced), -10dBV (unbalanced) |
| Available colors: | Red, Black, Yellow |
| Gross Weight: | 7.5 kg / 16.6lb |
| Net weight: | 5.9 kg / 13lb |
| Gross Dimensions: | L320 x W287 x H389 mm L12.6x W11.3 x H15.31 in |
| Net Dimensions: | L222 x W192 x H275 mm L8.74x W7.56 x H10.83 in |
Turbo 5 is an active studio monitor and an ideal solution, when a smaller model is an attractive option. The digital bi-amp-driven loudspeaker is great for perfect mixes and mastering in small to medium monitoring environments. The Turbo 5 is the ideal monitoring solution for professional recording studios. Or do you need accurate control in the broadcasting studio? No problem with the Turbo 5. Ambitious gamers dive into the acoustic gaming world with even more realism. Thanks to the well thought out accessories, the Turbo 5 is also the perfect monitoring solution as a fixed installation in bars, restaurants, shops or in the office.
The application fields for near field monitoring with the small Turbo 5 are extremely broad. A 5.25” woofer with a magnetically shielded polypropylene/ceramic membrane is combined with a 1” silk tweeter. The amplification power of the bi-amp module is 50 watts for the low-end frequency range and 30 watts for the high-end frequency range.
| Woofer: | 5 1/4-inch magnetically shielded polypropylene / ceramic membrane |
| Tweeter: | 1-inch silk dome tweeter |
| Frequency response: | 55Hz - 30kHz |
| HF - Level: | -6dB ~ +6 dB variable at 10kHz |
| LF - Level: | -6dB ~ +6 dB variable at 100Hz |
| Crossover frequency: | 3kHz |
| LF - Amplifier Power: | 50W |
| HF - Amplifier Power | 30W |
| Signal HF / LF: | 90dB / 95dB |
| THD + N @ Rated Power HF / LF: | 0.02% / 0.05% |
| Inputs: | XLR/TRS - Neutrik® Combo-jack, RCA input, S/PDIF - RCA input for digital signal |
| Outputs: | S / PDIF - RCA jack for digital signal thru |
| Input Select: | Analog or Digital |
| Channel selection: | Left or Right (Digital input mode only) |
| Input Impedance: | 20 kOhm balanced, 10 kOhm unbalanced |
| Input Sensitivity: | +4 dBu (Balanced), -10dBV (unbalanced) |
| Available colors: | Red, Black, Yellow |
| Gross Weight: | 7.5 kg / 16.6lb |
| Net weight: | 5.9 kg / 13lb |
| Gross Dimensions: | L320 x W287 x H389 mm L12.6x W11.3 x H15.31 in |
| Net Dimensions: | L222 x W192 x H275 mm L8.74x W7.56 x H10.83 in |
Spezifikationen
| Farbe | Rot oder Schwarz oder Gelb |
