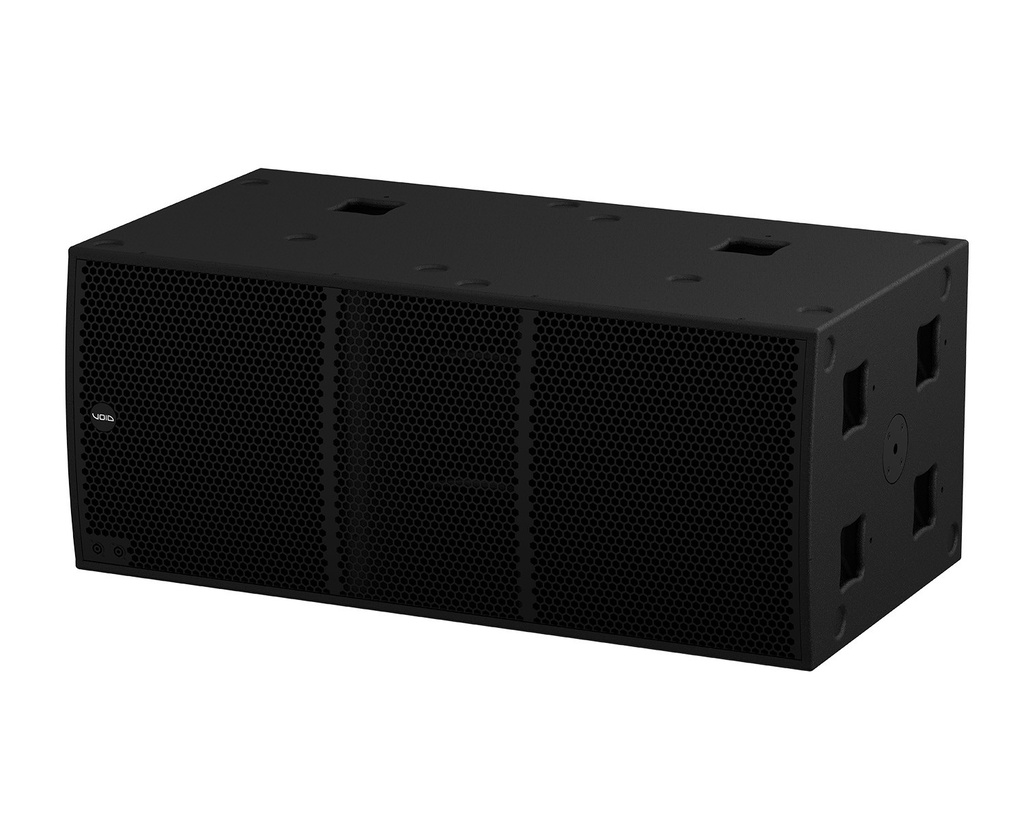

ARCLINE 218
Passive Sub, 2x18", 2 x 8ohm, 3000W AES, Touring
Two High Power 18” Neodymium Transducers
The Arcline 218 actively enhances the line array enclosure offering with ground-breaking technical developments, including the use of extensive Finite Element Analysis (FEA) resulting in maximised performance while maintaining a minimalist footprint.
External Dimensions Optimised For Truck Packing
Enhanced for touring applications the front and rear speakON™️ chassis allows for attractive cable management when running in cardioid configuration. The Arcline 218 is optimised for use in theatres, event spaces and outdoor areas or arenas.
Key Features
- Two high power 18” neodymium transducers
- Front and rear speakONTM chassis
- New ergonomic handle cup design
- Arrayable in multiple configurations, including cardioid
- External dimensions optimised for truck packing
- Hard-wearing textured ‘TourCoat’ polyurea finish
Full Specifications
- Frequency response: 30 Hz - 200 Hz ±3 dB
- Efficiency1: 100 dB 1W/1m
- Nominal impedance: 2 x 8 Ω
- Power handling2: 3000 W AES
- Maximum output3: 134 dB cont, 140 dB peak
- Driver configuration: 2 x 18” LF neodymium
- Dispersion: Array dependant
- Connectors: Front: 2 x 4-pole speakON™ NL4 Rear: 2 x 4-pole speakON™ NL4
- Weight: 91 kg (200.6 lbs)
- Finish: Textured ‘TourCoat’ polyurea
- Rigging: 1 x M20 top hat
