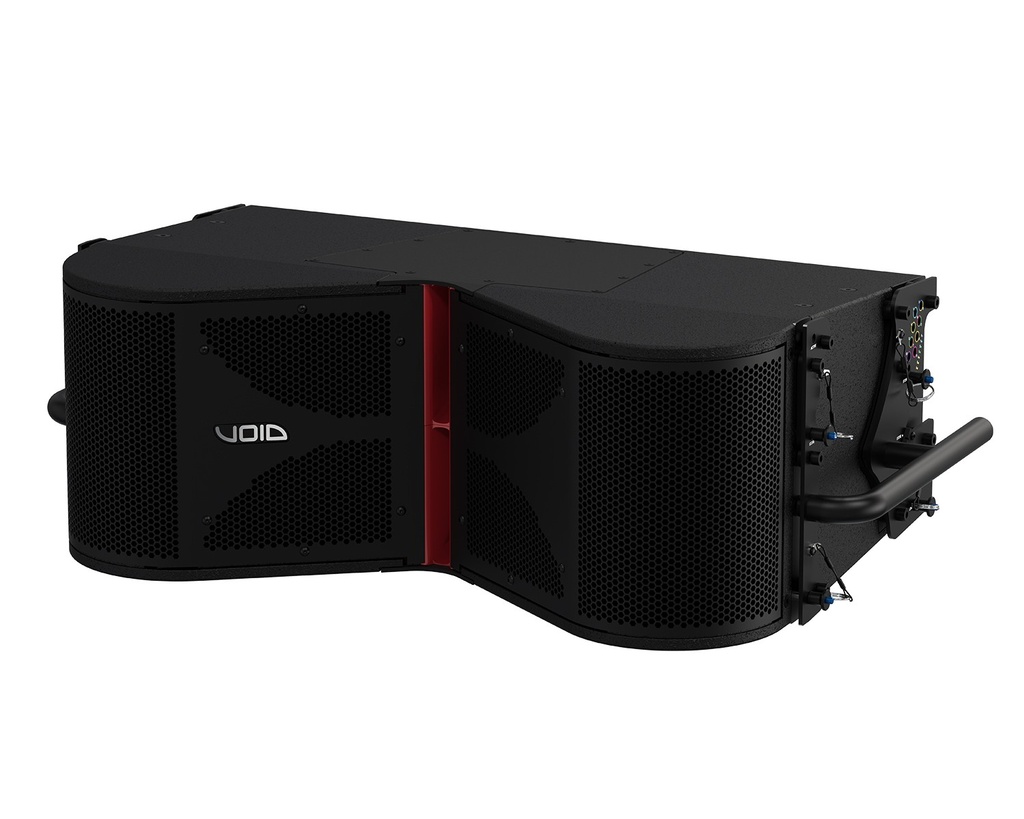

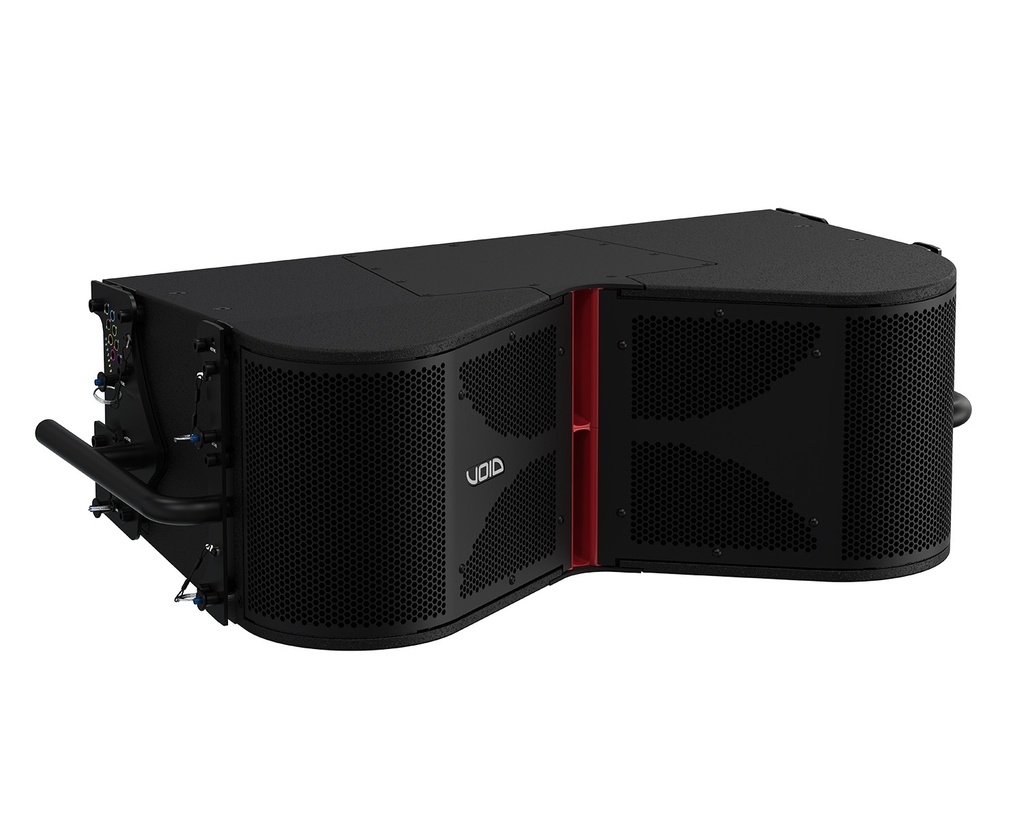

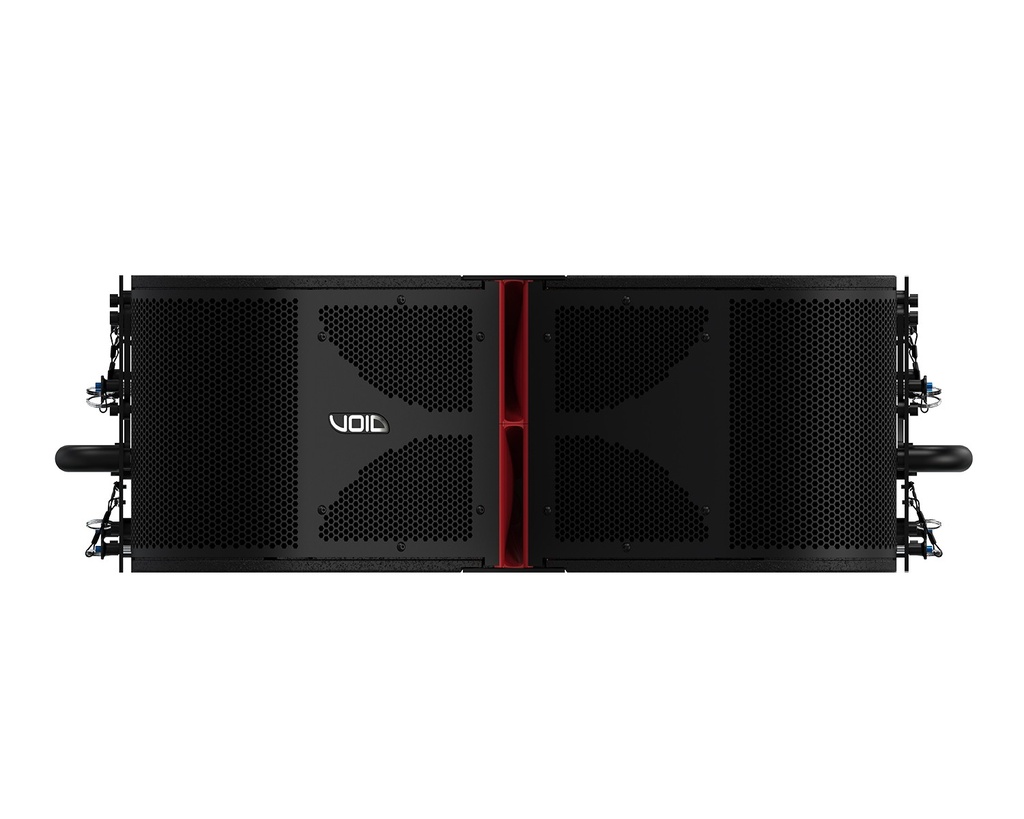

ARCLINE 8
LineArray Passive 3-way, 4x8/2x1.4", 2x16ohm, 1000W AES, 110x12°, Touring
Two 8” Horn Loaded Low Frequency Drivers
Operating as a two-way active, three-way line array module system, the Arcline 8 is trusted amongst live-sound and audio professionals; with a host of new technologies dramatically improving the perceived sound quality and definition.
Two 1.4” Compression Drivers
Delivering a true 110-degree dispersion results in a highly uniform polar pattern ensuring unwavering fidelity across the entire sound field. A popular choice for large scale-touring; indoor and outdoor events as well as for use in bars and clubs.
Key Features
- 110° horizontal dispersion

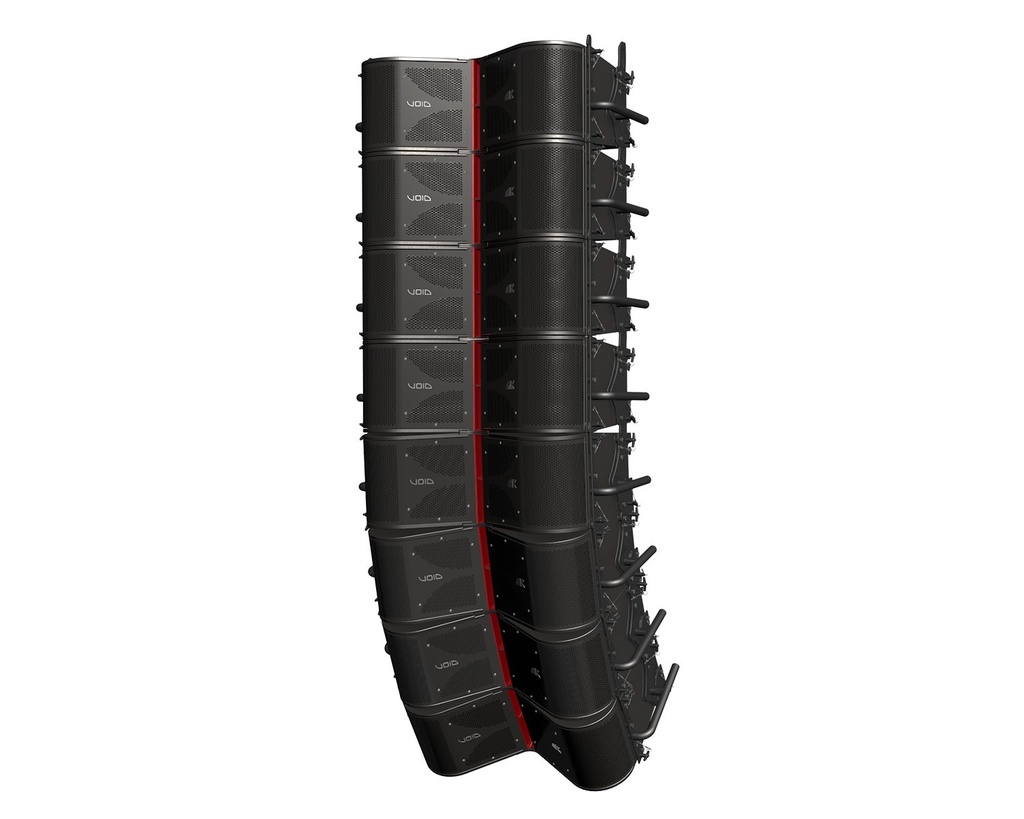

- True cylindrical wavefront
- 2 x 8” mid drivers with phase device
- 2 x 8” horn loaded low frequency drivers
- 2 x 1.4” compression drivers
- Rigging angle pre-selected before you lift the enclosures
- Ground stackable
Full Specifications
- Frequency response: 110 Hz - 20 kHz single enclosure, 90 Hz - 20 kHz three enclosures
- Efficiency1: LF: 100 dB | MF/HF: 106 dB 1W/1m
- Nominal impedance: 2 x 16 Ω
- Power handling2: LF: 500 W AES, HMF: 500 W AES
- Maximum output3: 132 dB cont, 139 dB peak
- Driver configuration: 2 x 1.4” compression drivers, 2 x 8” mid drivers with phase device, 2 x 8” horn loaded low frequency drivers
- Dispersion: 110°H x 12°V
- Protection: Internal electronic control

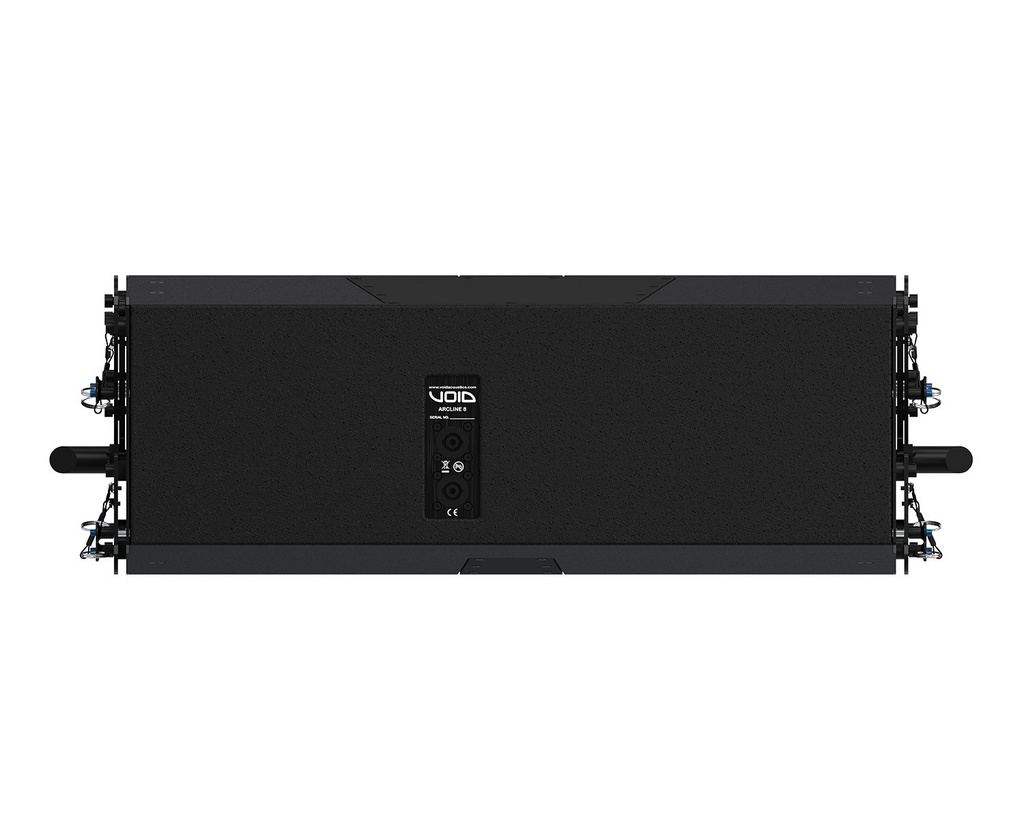

- Connectors: 2 x 4-pole speakON™ NL4
- Weight: 39 kg (86 lbs)
- Enclosure: 15 mm multi-laminate plywood

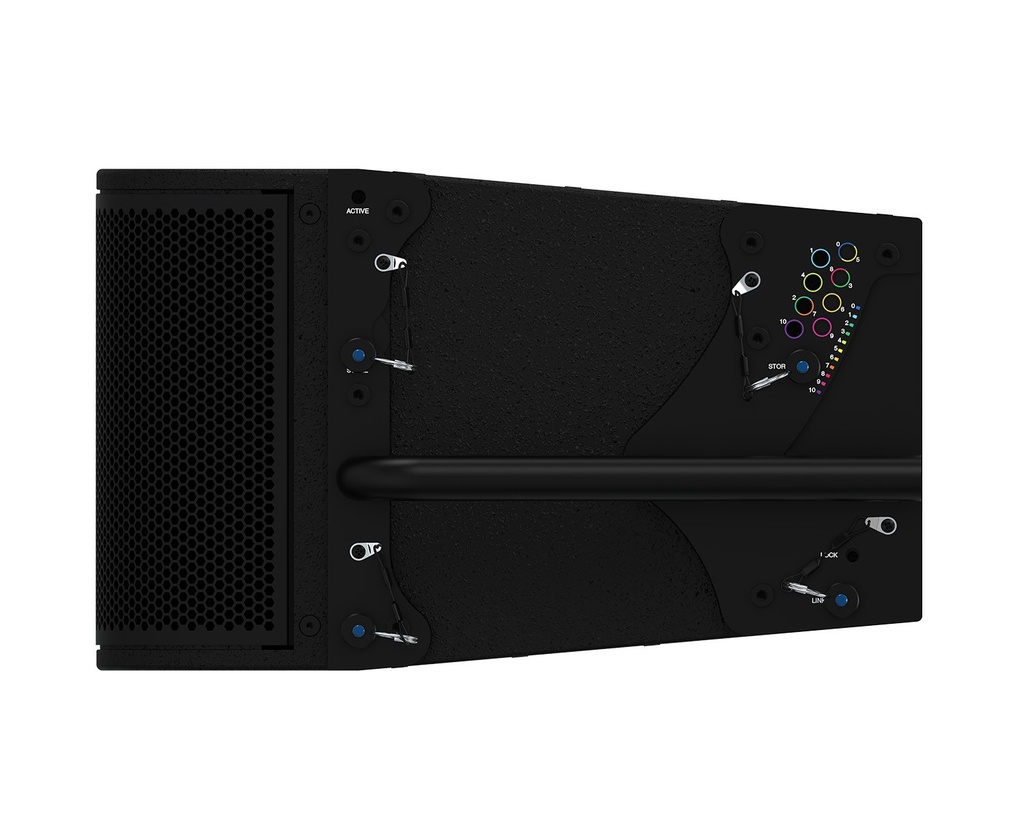

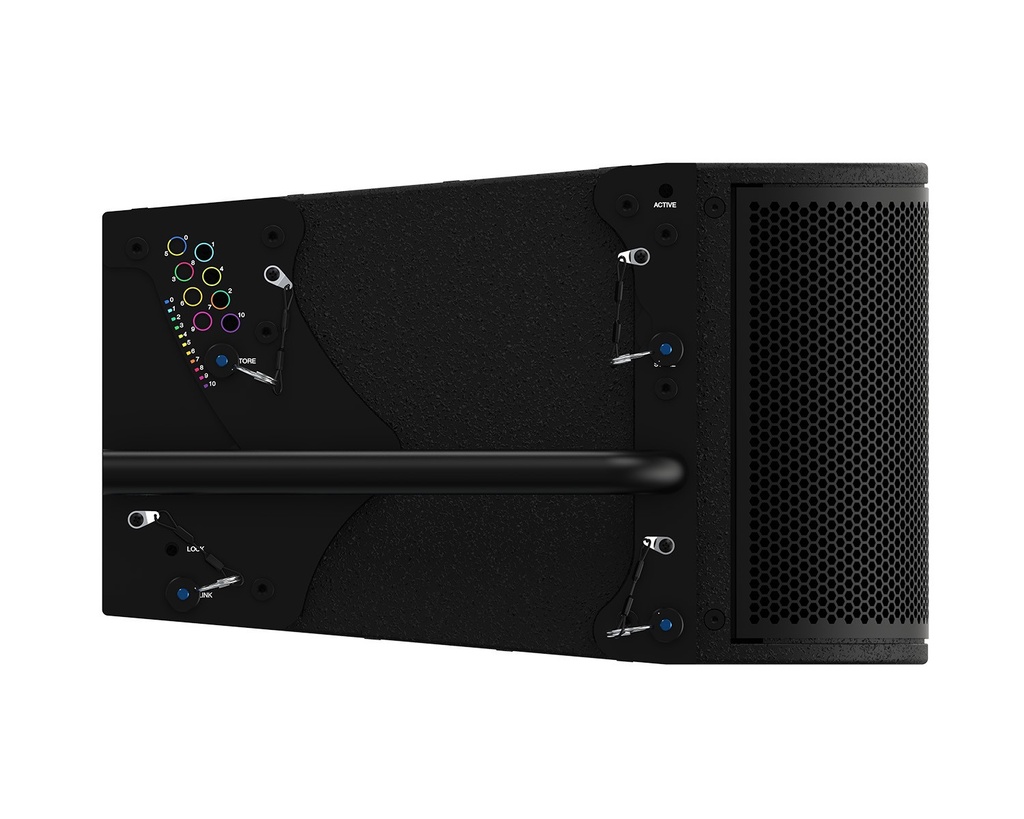

- Rigging: angle pre-selected before you lift the enclosures, ground stackable
- Finish: Textured ‘TourCoat’ polyurea
- Grille: Perforated steel with foam filter
