Void Acoustics

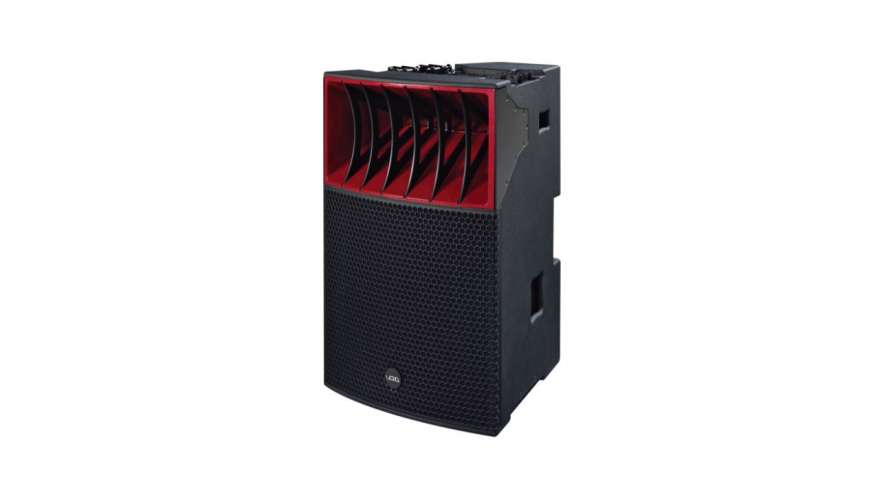

ARCLITE RG
Passive 3-way, 15/4/2.5", 8/16ohm, 1190W AES, 35x60°, Rigging
Arrayable Point Source
Designed for pairing with Arcline 218 and 118 subwoofers, Arclite operates as a two-way active, three-way arrayable point source loudspeaker. A true point source alternative to the Arcline 8, offering scalability with maximum output and coherence.
Predictable and Reliable Behaviour
Tailored for audio integrators and sound engineers with a focus on touring. Guaranteeing predictable behaviour in the most challenging applications. An arrays dispersion and sound pressure levels can be configured precisely to best serve any demands.
Key Features
- Two-way active, three-way arrayable point source
- Ground stack or flying configurations available
- Asymmetrical combination waveguide and horn optimised with FEA
- Dual NL4 speakON™ connector with link out for quick and easy set up
- Arrayable in vertical and horizontal configurations
- Blanking plate for use without rigging
Full Specifications
- Frequency response: 45 Hz - 18 kHz ±3 dB
- Efficiency1: MHF: 113 dB 1 W / 1 m LF: 98 dB 1 W / 1 m
- Nominal impedance: LF: 8 Ω, MHF: 16 Ω
- Power handling2: LF: 1000 W, MHF 190 W
- Maximum output3: 133 dB Cont, 139 Peak
- Driver configuration: 1 x 15” LF, 1 x 4” MF, 1 x 2.5” HF
- Dispersion: 35° H x 60° V (25° up - 35° down)
- Connectors: 2 x 4-pole speakON™ NL4
- Weight: 44 kg (97 lbs)
- Enclosure: 15 mm birch plywood
- Mounting: Ground stack or suspended
- Finish: Textured ‘TourCoat’ polyurea
Arrayable Point Source
Designed for pairing with Arcline 218 and 118 subwoofers, Arclite operates as a two-way active, three-way arrayable point source loudspeaker. A true point source alternative to the Arcline 8, offering scalability with maximum output and coherence.
Predictable and Reliable Behaviour
Tailored for audio integrators and sound engineers with a focus on touring. Guaranteeing predictable behaviour in the most challenging applications. An arrays dispersion and sound pressure levels can be configured precisely to best serve any demands.
Key Features
- Two-way active, three-way arrayable point source
- Ground stack or flying configurations available
- Asymmetrical combination waveguide and horn optimised with FEA
- Dual NL4 speakON™ connector with link out for quick and easy set up
- Arrayable in vertical and horizontal configurations
- Blanking plate for use without rigging
Full Specifications
- Frequency response: 45 Hz - 18 kHz ±3 dB
- Efficiency1: MHF: 113 dB 1 W / 1 m LF: 98 dB 1 W / 1 m
- Nominal impedance: LF: 8 Ω, MHF: 16 Ω
- Power handling2: LF: 1000 W, MHF 190 W
- Maximum output3: 133 dB Cont, 139 Peak
- Driver configuration: 1 x 15” LF, 1 x 4” MF, 1 x 2.5” HF
- Dispersion: 35° H x 60° V (25° up - 35° down)
- Connectors: 2 x 4-pole speakON™ NL4
- Weight: 44 kg (97 lbs)
- Enclosure: 15 mm birch plywood
- Mounting: Ground stack or suspended
- Finish: Textured ‘TourCoat’ polyurea
