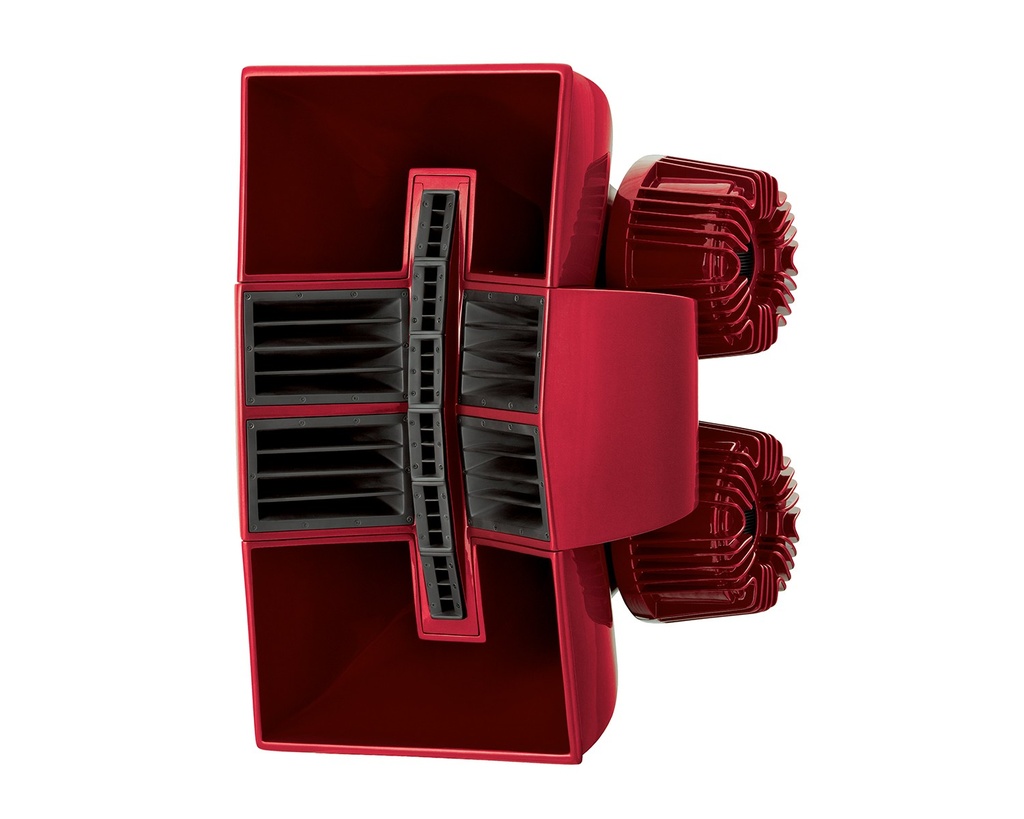

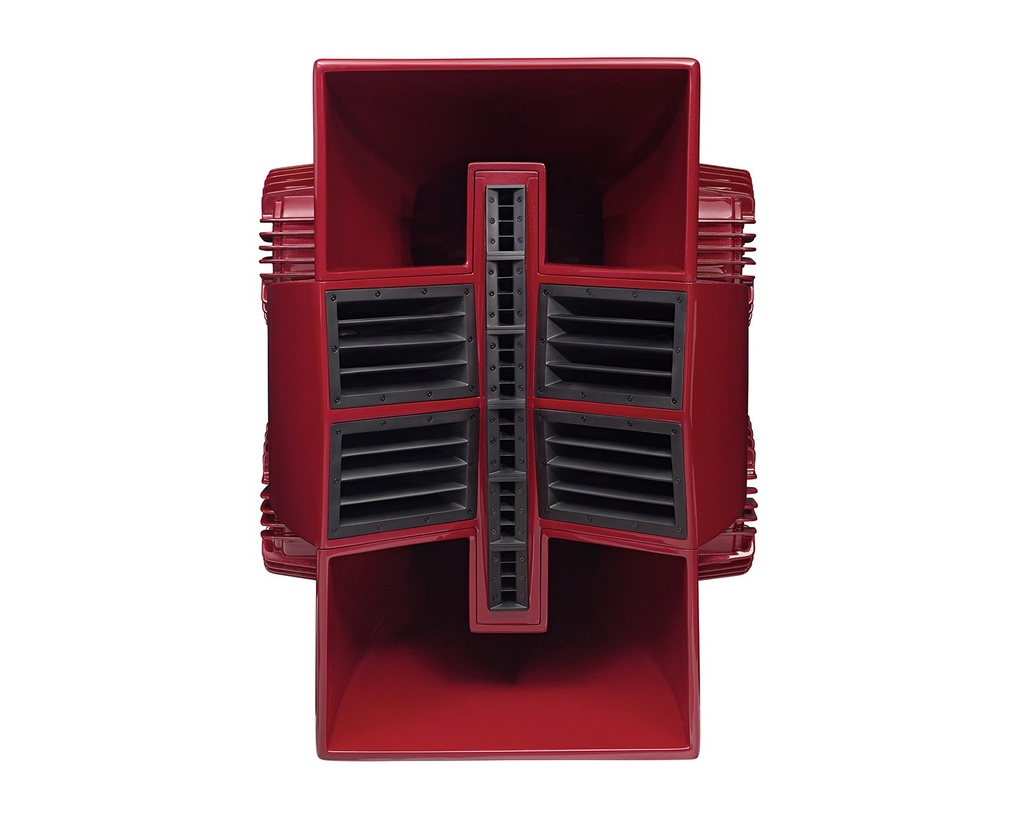

Air Array

Unparalleled aesthetics, untold sound

The Air Array delivers irrefutable audio mastery in a pristine, sculpted form.

Three-Way Bi-Amped Sculpted Loudspeaker Array

Radically designed with captivating features and exceptionally defined output; this progressive loudspeaker array is an acclaimed piece of armoury within the industry, breaking boundaries to create a brave new standard of audio innovation.

Purposefully Designed

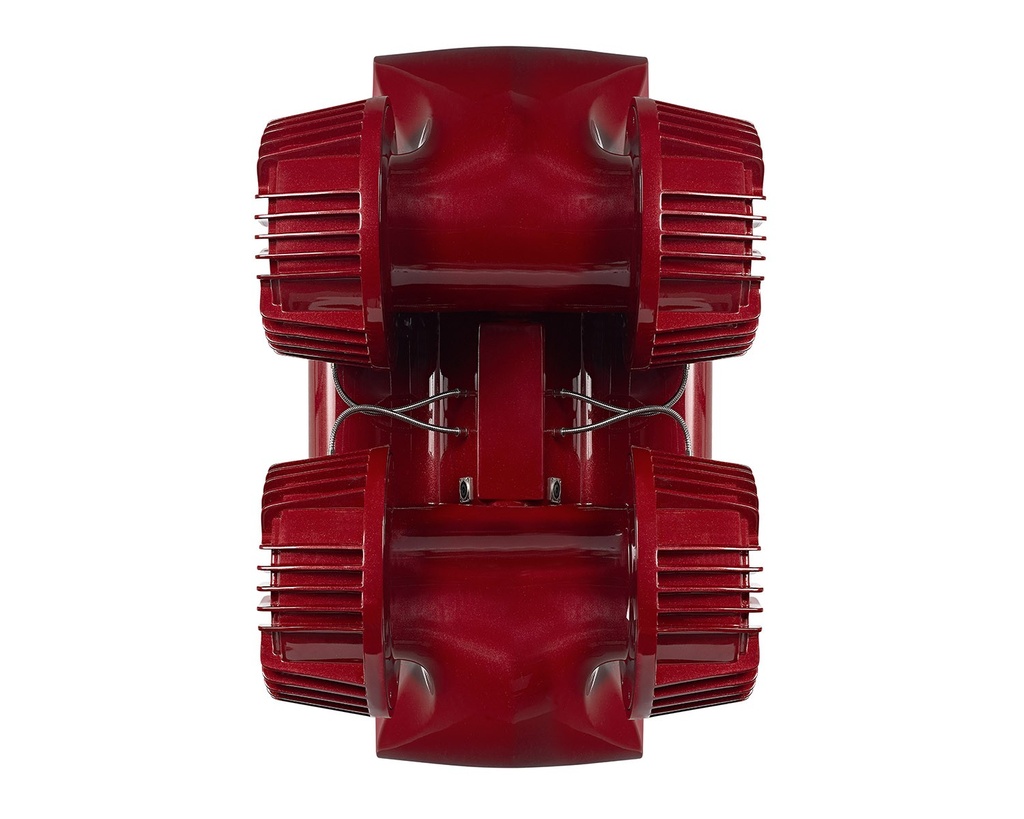

The Air Array is the only mid-high enclosure that provides constant SPL at all distances. The heatsink cooling system reduces power compression levels to result in an exceptionally defined and powerful output; perfect for larger style-led nightclubs.

Key Features

• Three-way bi-amped sculpted loudspeaker array
• Line source radiation pattern
• Low resonance fibreglass composite construction
• 14 discrete proprietary transducers
• Integrated mounting system
• Ground stack on subwoofers

Full Specifications

• Frequency Response: 90 Hz - 26 kHz ±3 dB
• Efficiency¹: LF: 111 dB 1W/1m, MF: 114 dB 1W/1m, HF: 116 dB 1W/1m
• Nominal Impedance: LF: 2 x 4 Ω, MF: 2 x 4 Ω, HF: 2 x 5.33 Ω
• Power Handling²: LF: 3600 W AES, MF: 800 W AES, HF: 320 W AES
• Maximum Output³: 146 dB cont, 152 dB peak
• Driver Configuration: 4 x 12” LF, 4 x 3” MF compression driver, 6 x 1” HF compression driver
• Dispersion: 90°H x 45°V
• Connectors: 2 x 8-pole speakON™ NL8
• Weight: 144.8 kg (319.2 lbs) including stand
• Enclosure: Fibreglass composite
• Mounting: Stack mounted or proprietary suspension system
• Finish: Smooth cellulose

¹ Measured in half space ² AES2 - 1984 compliant ³ Calculated
