Audio Technica
ES945LED
Omnidirectional Condenser Boundary Microphone with LED
Control at your fingertips
With its low-profile design that mounts unobtrusively in tabletops for minimum visibility, the ES945/LED omnidirectional condenser boundary microphone provides clear, highly intelligible audio that is perfect for sound reinforcement, professional recording and teleconferencing, television and other demanding sound pickup applications.
Protected by a rugged all-metal case with a two-layer steel mesh grille, the microphone’s omnidirectional polar pattern affords a 360° pickup angle, while its UniGuard® RFI-shielding technology provides outstanding rejection of radio frequency interference (RFI). Users can easily toggle between mute and live audio thanks to the microphone’s capacitive-type touch-sensitive switch. An integral Red/Green LED ring indicates the mute status, staying green when the microphone is live and turning red when it is muted.
Additionally, the ES945/LED is equipped with a self-contained power module with an XLRM-type output connector, eliminating the need for an external power module.
- Mounts unobtrusively in tabletops, ceilings or walls
- Low-profile element Provides uniform omnidirectional polar pattern with 360° acceptance angle
- RFI-shielding technology UniGuard® offers outstanding rejection of radio frequency interference (RFI)
- Self-contained electronics with XLRM termination eliminate the need for external power module
- Requires phantom power supply of 11V to 52V
- Rugged all-metal case with a two-layer steel mesh grille
- Capacitive touch-sensitive deviation allows users to switch easily mute / un-mute the microphone
- Integral LED ring indicates mute status-green when mic is live, when muted red
- A pair of isolators provide mechanical dampening of surface-mounting vibration
PURIFIED DESIGN
With a diameter of 38mm, the ES945/LED is extremely discreet and fits perfectly into a table, ceiling or wall.

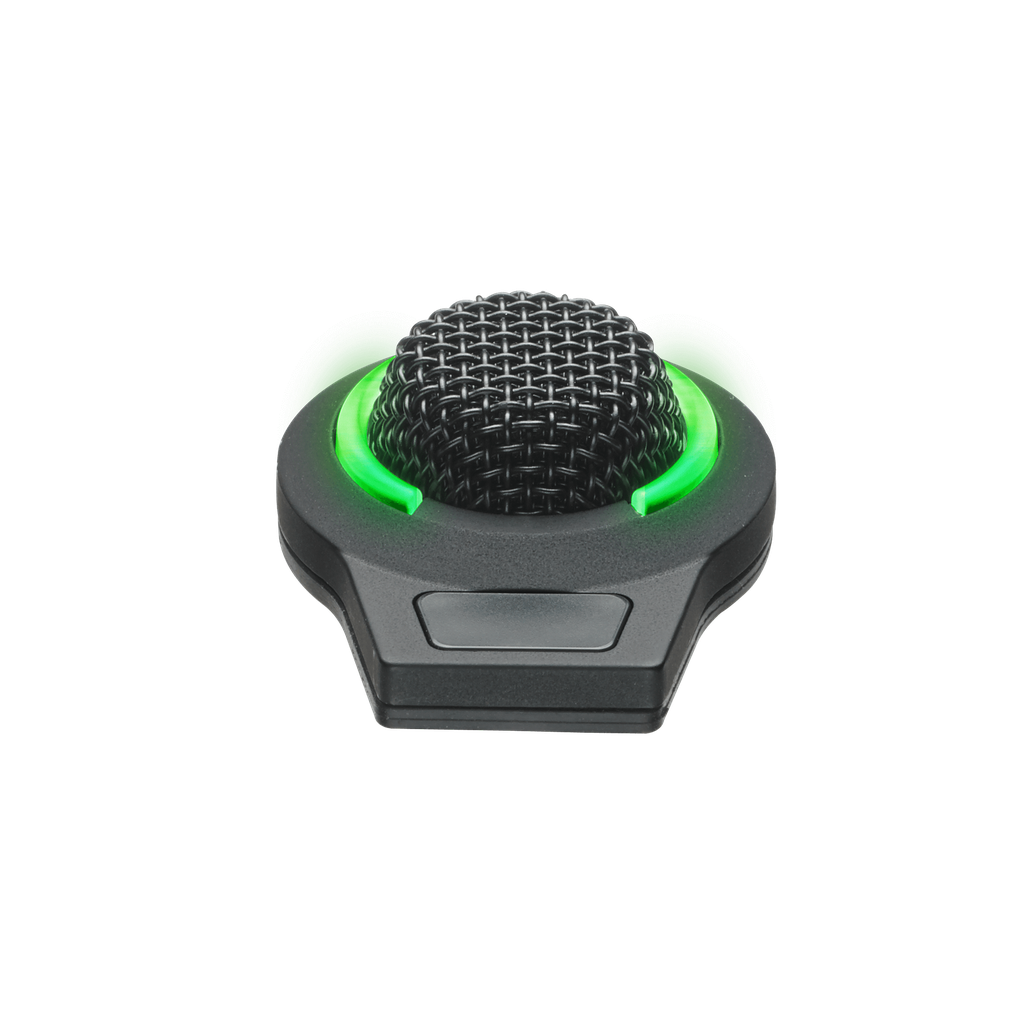

GREEN/RED LED status light
The ES945/LED is equipped with a 360° LED light ring that visually indicatess the status of the integrated microphone (on / off). It works through the microphone's phantom power, without requiring an additional external power supply.
INDEPENDENT POWER MODULE
The ES945/LED is equipped with an autonomous power supply module with an XLRM-type output connector, eliminating the need for an external power module.
LED STATUS LIGHT
The integrated circular LED light indicates the microphone's status; it stays green when the microphone is on and red when it is off.</p>
TOUCH SWITCH
The touch switch located next to the capsule of the ES945/LED enables users to easily switch the microphone on or off.
uniguard technology
The UniGuard® shielding technology fitted to all microphones in the Engineered Sound series offers outstanding rejection of radio frequency interference (RFI).
| Microphones | |
|---|---|
| Element | Fixed-charge back plate, permanently polarized condenser |
| Polar Pattern | Omnidirectional |
| Frequency Response | 40-19,000 Hz |
| Open Circuit Sensitivity | -40 dB (10 mV) re 1V at 1 Pa |
| Maximum Input Sound Level | 142 dB SPL, 1 kHz at 1% T.H.D. |
| Dynamic Range | 113 dB, 1 kHz at Max SPL |
| Signal-to-Noise Ratio | 65 dB, 1 kHz at 1 Pa |
| Phantom Power Requirements | 11-52V DC, 5.7 mA typical |
| Switches | Touch-sensitive control: on/mute |
| Weight | 65 g (2.3 oz) |
| Dimensions | 84.8 mm (3.33") long, 38.0 mm (1.49") diameter 48.0 mm (1.89") maximum width |
| Output Connector | Integral 3-pin XLRM-type |
| Accessories Included | One pair isolators |
