dB Technologies
IS-6T
Passive, 6.5’’Coax Fullrange 8ohms, 100W RMS Power

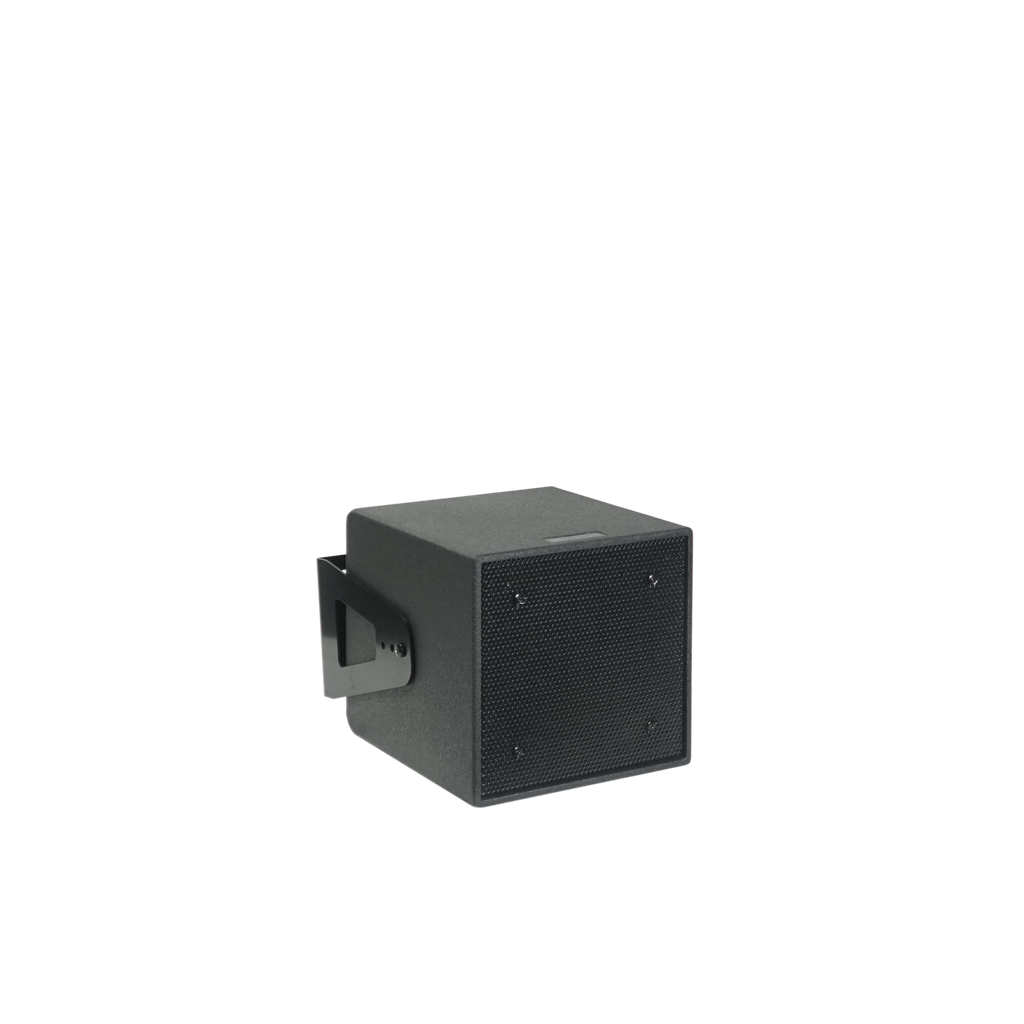

IS6T is a 2-way coaxial cube speaker designed for permanent installation.
Equipped with a 6.5" coaxial component, this is a simple compact cabinet that fit-in everywhere, essentially designed for high quality background music.
IS cube speakers install in a few minutes thanks to the dedicated bracket included in the package.
Needless to say the keyword here is: ease of installation and unobtrusiveness. That's why each single system in IS series comes with a smooth design with few invisible pin points, Phoenix connectors, black or white version.
Technical Data
| Speaker Type | Passive 2-way Coaxial Speaker |
Acoustical data
| RMS Power | 100 W |
| Peak Power | 400 W |
| Frequency Response [-6 dB] | 85 Hz - 20,000 Hz |
| Impedance | 8 Ohm |
| Sensitivity 1W@m | 93 dB |
| Max SPL | 119 dB |
| HF | 1x 0.75", 1" v.c. Neodymium |
| LF | 1x 6.5", 1.5" v.c. Coaxial woofer |
| Dispersion | 100x100° |
| X-Over Frequency | 2100 Hz (internal X-Over) |
Input
| Connections | Phoenix |
Mechanics
| Housing | Plywood, water-painted coating |
| Rigging points | 2x M6 threaded nut |
| Accessories | bracket included |
| IP rating | IP 32 |
| Width | 195 mm (7.7 in) |
| Height | 195 mm (7.7 in) |
| Depth | 210 mm (8.3 in) |
| Weight | 4.8 kg (10.6 lbs) |
