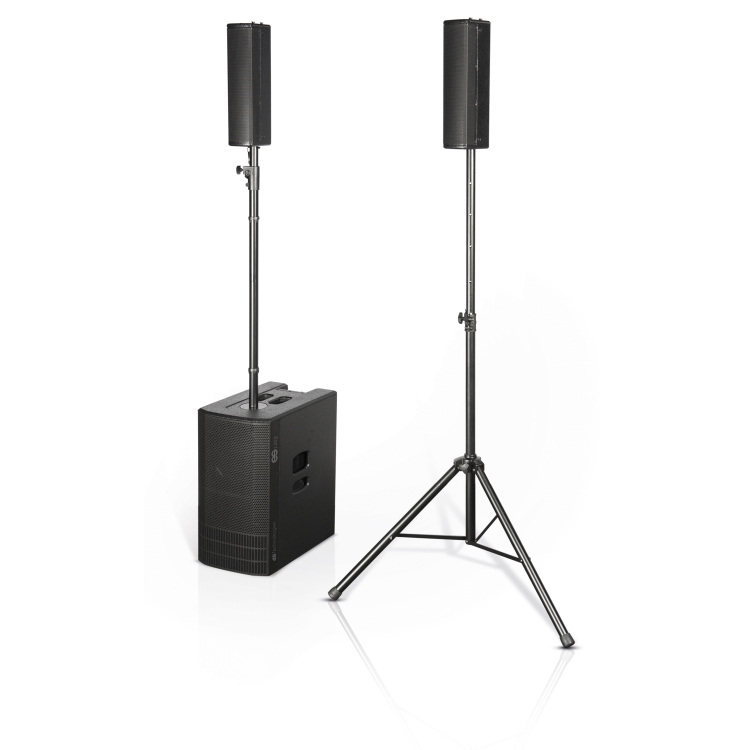

dB Technologies

ES-1203

https://www.mgmaudio.ch/web/image/product.template/2478/image_1920?unique=25265cb

Active, 2x12", 8x4", Stereo-Säulensystem, 2400W

CHF 2'058.28 2058.28 CHF CHF 2'058.28 TVA comprise

CHF 2'058.28 TVA comprise

Pas disponible à la vente

Auf Lager
  • Farbe

Diese Kombination existiert nicht.

Conditions générales
Versand: 2-3 Arbeitstage

ES family grows stronger with ES 1203, a complete stereo sound system encompassing its predeccessors’ versatility with striking SPLs (the system features a 2400W last-generation power amp) and an impressively coherent throw pattern.
Technical Data
Speaker Type 3-amped Stereo System withtwo full-range tops and one subwoofer
Acoustical data
Frequency Response [-10dB] 35 - 20.000 Hz
Max SPL 132 dB
MF - HF 8x4", v.c. 1"
Type MF - HF Neodymium
LF 2X12"
Directivity 97x60°
Amplifier
Amp Technology Digipro® G4
Amp Class Class-D
Power Amp Peak 2400 W
Controls 1xOLED Display with rotary encoder w/button 1x Audio signal monitoring LED1XUSB port (service data)
Power Supply Fullarange with PFC
Power connection VDE Socket
Cooling Convection
Processor
Controller DSP 56 Bit
Converter AD/DA 24 Bit/48 Hz
Limiter Peak, RMS, Thermal
Crossover Frequency LF-MF 160 Hz
Digital Steering Up/Down/Far
Input
Input Channels: 1x Mic/Instrument Combo (XLR/Jack)2xMic/Line Combo (XLR/Jack)1XBluetooth built-in receiver
Mix Output 1x XLR balanced output
Mechanics
Housing (Subwoofer) Plywood with full metal grille
Housing (Tops) Plywood with full metal grille
Pole Mount 36 mm (M20 Thread)
Handles (subwoofer) 1xtop 1x lateral side
Width (Top) 110 mm (4.33 in)
Height (Top) 460 mm (18.11in)
Depth (Top) 160 mm (6.30 in)
Width (Subwoofer) 360 mm (14.17 in)
Height (Subwoofer) 680 mm (26.77 in)
Depth (Subwoofer) 545 mm (21.46 in)
Weight (Top) 3.3 Kg – 7.27 lbs.
Weight (Subwoofer) 29.3 Kg – 64.59 lbs.

Spécifications

Farbe Schwarz ou Weiss
