dB Technologies

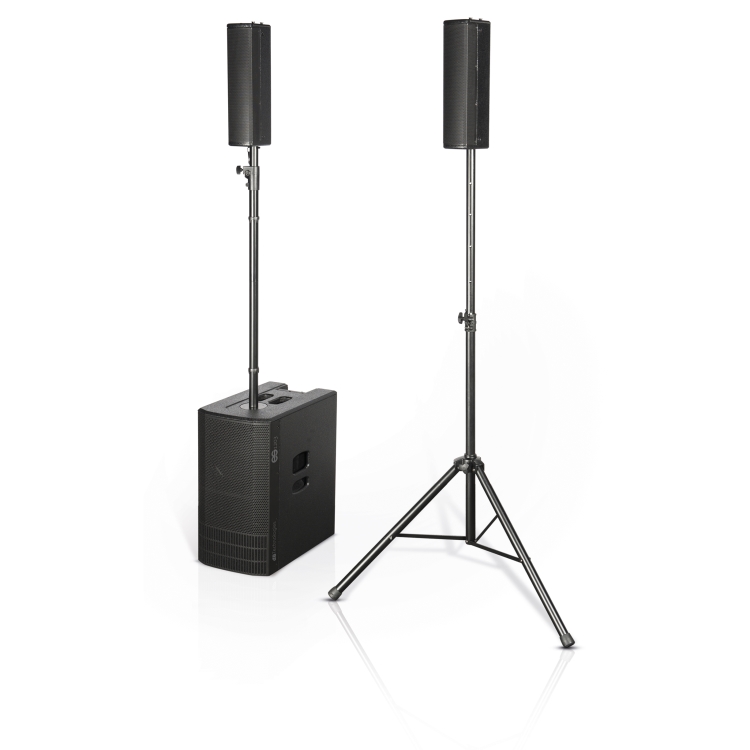

ES-1203
Active, 2x12", 8x4", Stereo-Säulensystem, 2400W
ES family grows stronger with ES 1203, a complete stereo sound system encompassing its predeccessors’ versatility with striking SPLs (the system features a 2400W last-generation power amp) and an impressively coherent throw pattern.
Technical Data
Speaker Type | 3-amped Stereo System withtwo full-range tops and one subwoofer |
Acoustical data
Frequency Response [-10dB] | 35 - 20.000 Hz |
Max SPL | 132 dB |
MF - HF | 8x4", v.c. 1" |
Type MF - HF | Neodymium |
LF | 2X12" |
Directivity | 97x60° |
Amplifier
Amp Technology | Digipro® G4 |
Amp Class | Class-D |
Power Amp Peak | 2400 W |
Controls | 1xOLED Display with rotary encoder w/button 1x Audio signal monitoring LED1XUSB port (service data) |
Power Supply | Fullarange with PFC |
Power connection | VDE Socket |
Cooling | Convection |
Processor
Controller | DSP 56 Bit |
Converter AD/DA | 24 Bit/48 Hz |
Limiter | Peak, RMS, Thermal |
Crossover Frequency LF-MF | 160 Hz |
Digital Steering | Up/Down/Far |
Input
Input Channels: | 1x Mic/Instrument Combo (XLR/Jack)2xMic/Line Combo (XLR/Jack)1XBluetooth built-in receiver |
Mix Output | 1x XLR balanced output |
Mechanics
Housing (Subwoofer) | Plywood with full metal grille |
Housing (Tops) | Plywood with full metal grille |
Pole Mount | 36 mm (M20 Thread) |
Handles (subwoofer) | 1xtop 1x lateral side |
Width (Top) | 110 mm (4.33 in) |
Height (Top) | 460 mm (18.11in) |
Depth (Top) | 160 mm (6.30 in) |
Width (Subwoofer) | 360 mm (14.17 in) |
Height (Subwoofer) | 680 mm (26.77 in) |
Depth (Subwoofer) | 545 mm (21.46 in) |
Weight (Top) | 3.3 Kg – 7.27 lbs. |
Weight (Subwoofer) | 29.3 Kg – 64.59 lbs. |
ES family grows stronger with ES 1203, a complete stereo sound system encompassing its predeccessors’ versatility with striking SPLs (the system features a 2400W last-generation power amp) and an impressively coherent throw pattern.
Technical Data
Speaker Type | 3-amped Stereo System withtwo full-range tops and one subwoofer |
Acoustical data
Frequency Response [-10dB] | 35 - 20.000 Hz |
Max SPL | 132 dB |
MF - HF | 8x4", v.c. 1" |
Type MF - HF | Neodymium |
LF | 2X12" |
Directivity | 97x60° |
Amplifier
Amp Technology | Digipro® G4 |
Amp Class | Class-D |
Power Amp Peak | 2400 W |
Controls | 1xOLED Display with rotary encoder w/button 1x Audio signal monitoring LED1XUSB port (service data) |
Power Supply | Fullarange with PFC |
Power connection | VDE Socket |
Cooling | Convection |
Processor
Controller | DSP 56 Bit |
Converter AD/DA | 24 Bit/48 Hz |
Limiter | Peak, RMS, Thermal |
Crossover Frequency LF-MF | 160 Hz |
Digital Steering | Up/Down/Far |
Input
Input Channels: | 1x Mic/Instrument Combo (XLR/Jack)2xMic/Line Combo (XLR/Jack)1XBluetooth built-in receiver |
Mix Output | 1x XLR balanced output |
Mechanics
Housing (Subwoofer) | Plywood with full metal grille |
Housing (Tops) | Plywood with full metal grille |
Pole Mount | 36 mm (M20 Thread) |
Handles (subwoofer) | 1xtop 1x lateral side |
Width (Top) | 110 mm (4.33 in) |
Height (Top) | 460 mm (18.11in) |
Depth (Top) | 160 mm (6.30 in) |
Width (Subwoofer) | 360 mm (14.17 in) |
Height (Subwoofer) | 680 mm (26.77 in) |
Depth (Subwoofer) | 545 mm (21.46 in) |
Weight (Top) | 3.3 Kg – 7.27 lbs. |
Weight (Subwoofer) | 29.3 Kg – 64.59 lbs. |
