KlarkTeknik

DN32-MADI

https://www.mgmaudio.ch/web/image/product.template/2185/image_1920?unique=c9cd400

M32 Expanison Module

CHF 393.15 393.15000000000003 CHF CHF 393.15 TVA comprise

CHF 393.15 TVA comprise

Pas disponible à la vente

Wird für Sie bestellt

Diese Kombination existiert nicht.

Kontaktieren Sie uns

Conditions générales
Versand: 2-3 Arbeitstage

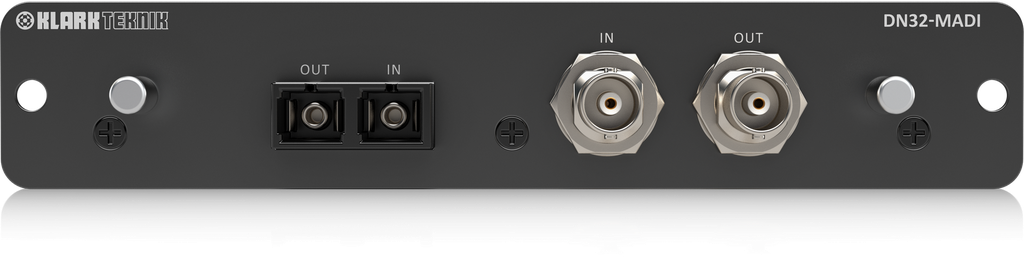

MADI devices are widely used in a broad range of pro audio applications including permanent installation, touring sound, live/studio recording, and broadcasting. The DN32-MADI expansion card enables your Midas M32 or Behringer X32 digital console to exchange 24-bit multichannel audio streams at 44.1 or 48 kHz with any other MADI compatible devices. Protocols supported by the DN32-MADI include AES10-1991 with up to 56 x 56 channels, and AES10-2003 with up to 64 x 64 channels.


  • MADI (AES10-compliant) expansion module for Midas and Behringer digital consoles

  • Up to 32 bidirectional channels @ 48 kHz sample rate

  • Operates up to 500 m over optical fibre link and 100 m over coaxial copper link

  • Optical transmission on SC-Duplex* connector

  • Copper transmission on 75 ohm coaxial BNC connectors

  • Dual-redundant operation with failover from optical to copper connections

  • Operates as either MADI clock master or MADI clock slave

  • Selection of 32 input and output channels (1-32, 33-64) from 64 MADI channels

  • 10-Year Warranty Program*

  • Designed and engineered in the U.K.
