  2. DN32-MADI
KlarkTeknik

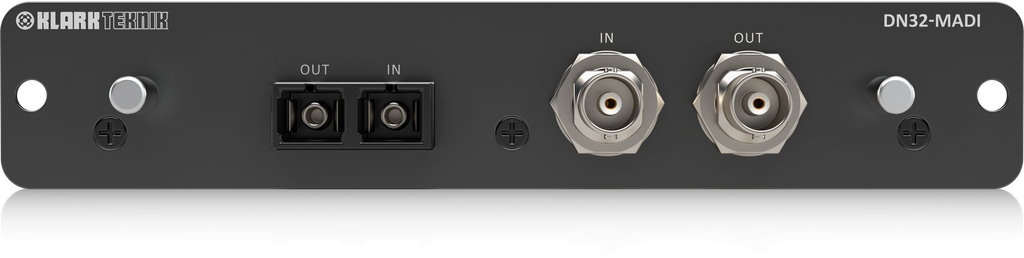

DN32-MADI

https://www.mgmaudio.ch/web/image/product.template/2185/image_1920?unique=00f1544

M32 Expanison Module

CHF 393.15 393.15000000000003 CHF CHF 393.15 VAT Included

CHF 393.15 VAT Included

Preis auf Anfrage

Wird für Sie bestellt

Diese Kombination existiert nicht.

Kontaktieren Sie uns

Geschäftsbedingungen
Versand: 2-3 Arbeitstage

MADI devices are widely used in a broad range of pro audio applications including permanent installation, touring sound, live/studio recording, and broadcasting. The DN32-MADI expansion card enables your Midas M32 or Behringer X32 digital console to exchange 24-bit multichannel audio streams at 44.1 or 48 kHz with any other MADI compatible devices. Protocols supported by the DN32-MADI include AES10-1991 with up to 56 x 56 channels, and AES10-2003 with up to 64 x 64 channels.


  • MADI (AES10-compliant) expansion module for Midas and Behringer digital consoles

  • Up to 32 bidirectional channels @ 48 kHz sample rate

  • Operates up to 500 m over optical fibre link and 100 m over coaxial copper link

  • Optical transmission on SC-Duplex* connector

  • Copper transmission on 75 ohm coaxial BNC connectors

  • Dual-redundant operation with failover from optical to copper connections

  • Operates as either MADI clock master or MADI clock slave

  • Selection of 32 input and output channels (1-32, 33-64) from 64 MADI channels

  • 10-Year Warranty Program*

  • Designed and engineered in the U.K.
