Audio Technica
AT831B
Miniature Cardioid Condenser Microphone (Phantom only)
This clip-on lavalier mic provides crisp, full-sounding voice pickup. It also excels as an instrument mic, especially for pickup of acoustic guitar. The wired configuration (AT831R) includes the AT8444 guitar mount. The mic is ideal for higher SPL applications, and offers excellent gain before feedback and suppression of background noise. Includes windscreen and clothing clip.
Available configurations:

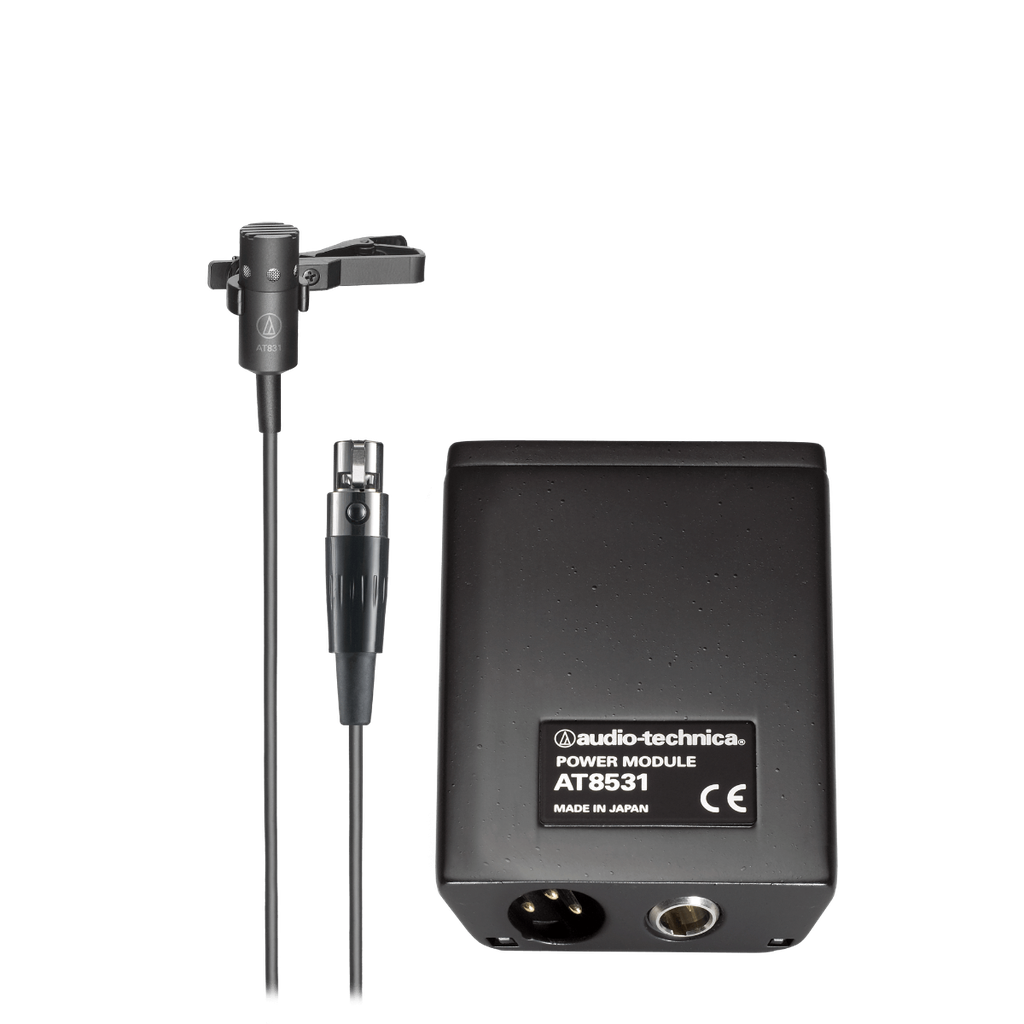

AT831b: 6' (1.8 m) permanently attached cable terminated with TA3F connector; AT8531 power module (with 80 Hz high-pass filter) for battery or phantom power.
AT831c: 10' (3 m) permanently attached cable (unterminated); no power module.
AT831cH: 55" (1.4 m) permanently attached cable terminated with a screw-down 4-pin connector for use with Audio-Technica cH-style body-pack wireless transmitters; no power module.
AT831cW: 55" (1.4 m) permanently attached cable terminated with cW-style locking 4-pin connector for use with Audio-Technica cW-style body-pack wireless transmitters; no power module.
| Microphones | |
|---|---|
| Element | Condenser |
| Polar Pattern | Cardioid |
| Frequency Response | 40 - 16,000 Hz |
| Low Frequency Roll Off | 80 Hz, 18 dB/octave (wired only) |
| Open Circuit Sensitivity | -42 dB (7.9 mV) re 1V at 1 Pa |
| Maximum Input Sound Level | 141 dB SPL, 1 kHz at 1% T.H.D. |
| Dynamic Range | 112 dB, 1 kHz at Max SPL (wired only) |
| Signal-to-Noise Ratio | 65 dB, 1 kHz at 1 Pa |
| Phantom Power Requirements | 11-52V DC, 2 mA typical (wired only) |
| Switches | Off, on-flat, on-roll-off (wired only) |
| Weight | Microphone : 2.8 g (0.1 oz) - Power Module : 81 g (2.9 oz) (wired only) |
| Dimensions | Microphone: 25.0 mm (0.98") long, 10.2 mm (0.40") diameter - Power Module: 3.66" (92.9 mm) long, 0.74" (18.9 mm) diameter |
| Output Connector | Integral 3-pin XLRM-type on Power Module (wired only) |
| Accessories Included | AT8417 clothing clip; AT8444 Instrument Microphone Adapter (wired only); AT8538 remote power module (wired only); AT8116 windscreen; protective carrying case (wired only) |
