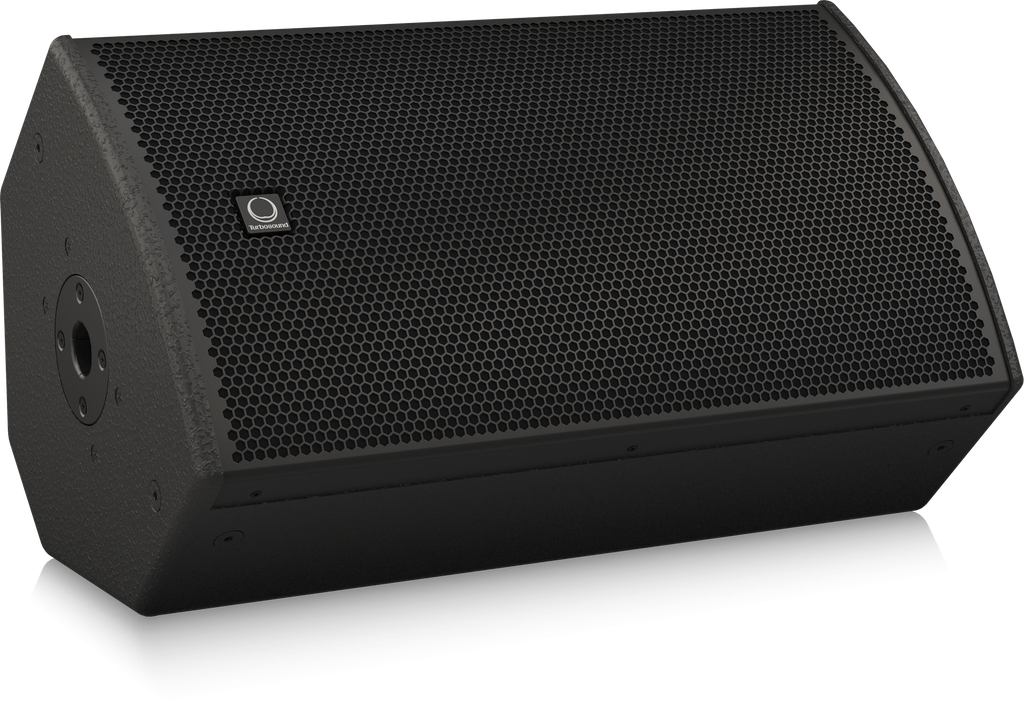

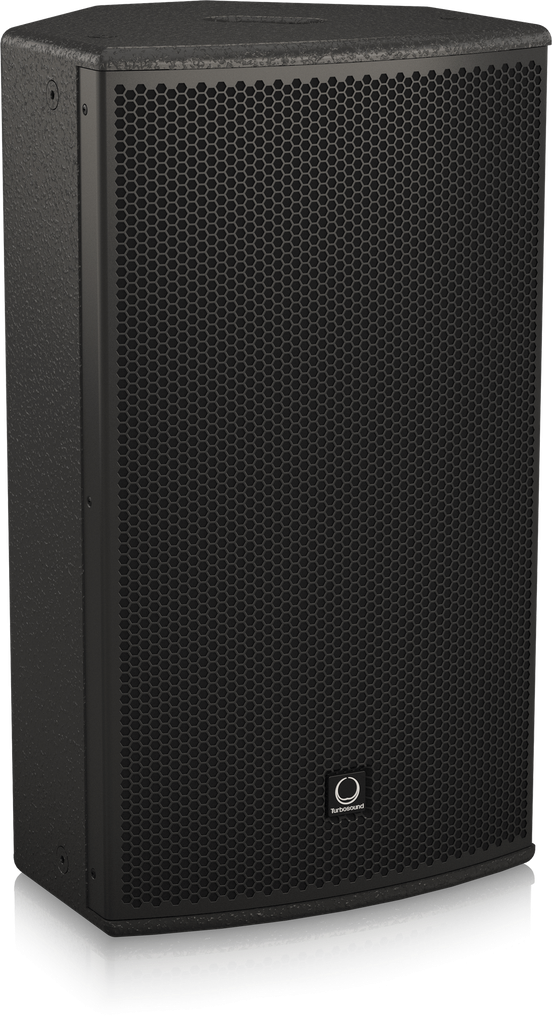

NuQ-122-AN
Turbosound

NuQ-122-AN

Active 2-way, 12/1", 2500W, 70x70°, Klark DSP, Ultranet
CHF 1,195.00 CHF 1,195.00 (Tax included)

Wird für Sie bestellt
Add to cart
Allgemeine Geschäftsbedingungen
Versand: 2-3 Arbeitstage
Frequency Response

55 Hz – 18 kHz ±3 dB
50 Hz – 20 kHz -10 dB
Nominal Dispersion

70° H x 70° V @ -6 dB points
Maximum SPL

131 dB peak
Crossover Type

Active
Transducers

1 x 12" ( 315.5) LF driver
1 x 1" (25.4 mm) HF compression driver
Limiter

Independent HF, LF, peak and rms
Amplifier
Maximum Output Power*

2,500 W

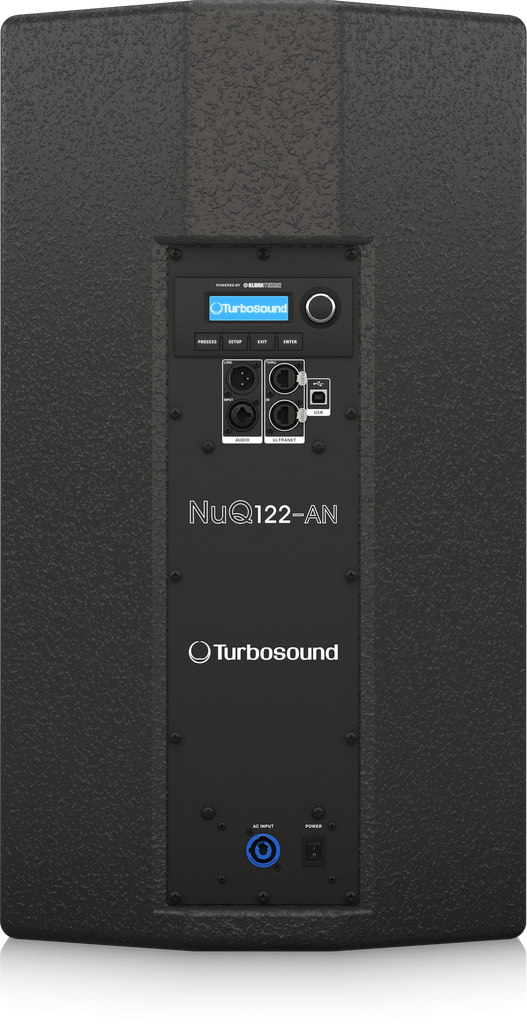

Connectors
Input/link

1 x Combo Jack/XLR 1 x XLR
Ultranet input/link

2 x RJ45
Mains Supply

Neutrik powerCON 20A†
Controls
DSP

Rotary push-encoder and level control
Buttons for Process, Setup, Exit, Enter
User DSP Functions
Factory EQ Presets

Positioning, Sound mode, FBQ
Display

LCD 128 x 32, blue, backlit
Delay

0 - 300 ms
Equalisation

High and low shelving EQ 2 x parametric EQ
Limiter

Zero attack input limiter
Presets

20 total presets, 19 user-definable
Crossover

High Pass L-R 24 dB/oct
Protection

Lock-out function for all settings
Ultranet Digital Network
Digital processing
System
Cabling
Power Supply
Power consumption

90 W @ 1/8 max power
Voltage (fuses)
Enclosure
Dimensions HWD

656 x 374 x 340 mm (25.8 x 14.7 x 13.4")
Net weight

20.2 kg (44.5 lbs)
Construction

15 mm (5/8") birch plywood
Finish

Semi matt black paint
Grille

Powder coated perforated steel
Flying hardware

M10 x 8 points
