dB Technologies

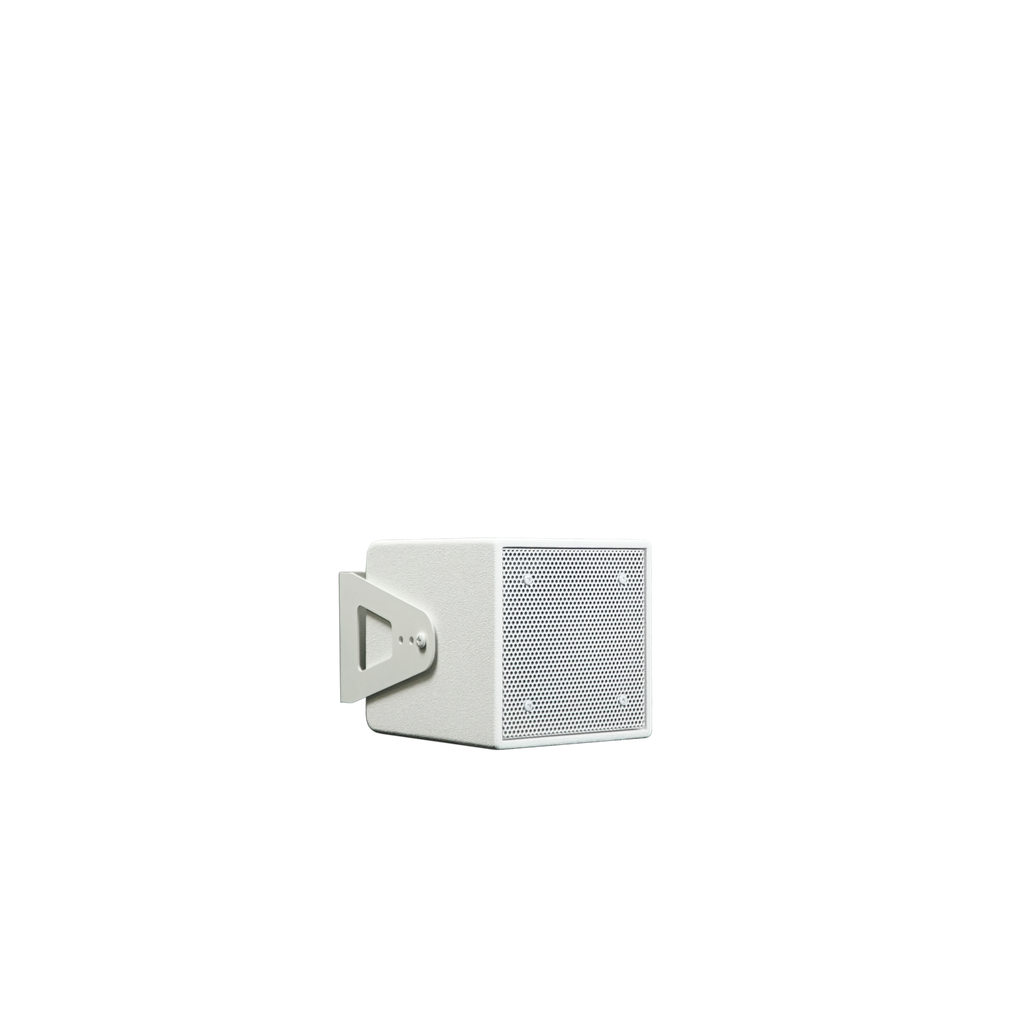

IS-5TW White
Passive 2- Way, 5/1" Coaxial, 8 Ohm, white
IS5T is a cube speaker designed for permanent installation.
Equipped with a 5" component, this is a simple compact cabinet that fit-in everywhere, essentially designed for high quality background music.
IS cube speakers install in a few minutes thanks to the dedicated bracket included in the package.
Needless to say the keyword here is: ease of installation and unobtrusiveness. That's why each single system in IS series comes with a smooth design with few invisible pin points, Phoenix connectors, black or white version.
Technical Data
| Speaker Type | Passive Fullrange Speaker |
Acoustical data
| RMS Power | 60 W |
| Peak Power | 240 W |
| Frequency Response [-6 dB] | 95 Hz - 18,000 Hz |
| Impedance | 8 Ohm |
| Sensitivity 1W@m | 92 dB |
| Max SPL | 116 dB |
| LF | 1x 5", 1 " v.c. Fullrange woofer |
| Dispersion | 110x110° |
Input
| Connections | Phoenix |
Mechanics
| Housing | Plywood, water-painted coating |
| Rigging points | 2x M6 threaded nut |
| Accessories | bracket included |
| IP rating | IP 32 |
| Width | 160 mm (6.3 in) |
| Height | 160 mm (6.3 in) |
| Depth | 180 mm (7 in) |
| Weight | 2.8 kg (6.17 lbs) |
