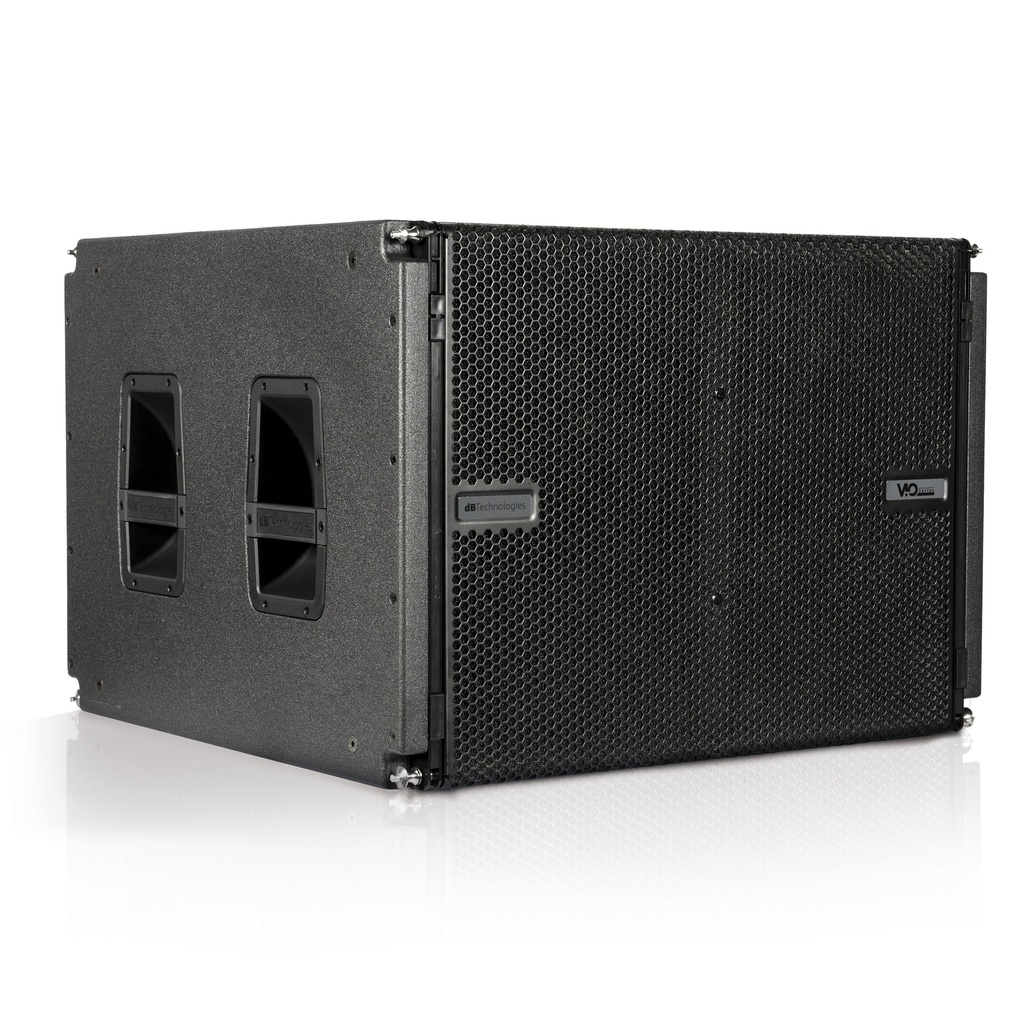

VIO-S118
Active, Sub, 1x18", 1600W RMS, flyable
dBTechnologies developed a horn loaded design, while maintaining the size of a front-loaded sub cabinet, resulting in a double advantage: smaller dimension (and weight – only 45.1 kg) and a remarkable lower frequencies response even at a long distance.
This makes this sub the perfect low-end extension of VIO arrays whenever a particularly long-throw is needed.
The system’s acoustical plus points are boosted by Digipro G4® 1600W Class D amplifier, the last generation of the Digipro amp technology which strongly contributed to the success of many dBTechnologies’ professional powered series. Equipped with PFC (Power Factor Correction) and SMPS , VIO S118 is highly resistant to line voltage fluctuations.
Digipro G4 pre-amp features a slot module allowing system monitoring and control via RDNet. Furthermore, the system is ready for future upgrades with DanteTM digital audio transmission network: in facts, VIO S118 also features a NFC system and a LED on the front grille.
The amps also allows users to run auto-test on electronics and transducers before and after use.
The amp module features an on board attenuation control and a delay module allowing to reach a max 9.9 ms delay with 0.1 ms steps. The on board cardioid preset process the sound of the backward sub in cardioid configurations (both flown or groundstacked).
S118’s cabinet is made of sturdy Multiplex plywood covered with a black polyuria finish and equipped with integrated hardware allowing 1 or more subs to be flown in a sub array or on the top of a VIO L210 array.
The system can be flown via DRK-210 flybar plus FSA-VIO L210 adapter for attaching VIO L210. GSA VIO L210 is necessary for stacked configurations with VIO L210.
The dedicated DO-VIOS118 trolley can be hooked directly on flown subs easing dismantling and transport operations.
Technical Data
Speaker Type | Active Horn-Loaded Flyable Subwoofer |
Acoustical data
Frequency Response [- 6 dB] | 39 Hz to Cut Freq (X-Over Dependent) |
Frequency Response [- 10 dB] | 36 Hz (HPF) |
Max SPL | 139 dB |
LF | 1x18", Neodymium |
Voice Coil LF | 4 " |
Directivity | Omnidirectional |
Amplifier
Amp Technology | Digipro® G4 |
Amp Class | Class D |
RMS Power | 1600 W |
Peak Power | 3200 W |
Cooling | Convection |
Power Supply | 1600 W with PFC |
Processor
Controller | DSP 32 |
AD/DA Converter | 24 bit 96 kHz |
Limiter | RMS, Peak, Thermal |
Delay Option | 0-9.9 ms internal Steps of 0.1 ms |
Crossover Frequency LF-HF | 60-110Hz + Full range |
LF-Xover out slope | 24 dB/Octave |
Input
Signal Input | 1xXLR balanced |
Signal Output | 1x XLR balanced (link or X-over)1xRJ45 LINK (RDNet) |
Expansion Card | 1xRJ45 IN (RDNet)1xRJ45 LINK (RDNet) |
Power Socket | 1xPowerCON TRUE1 IN1xPowerCON TRUE1 OUT |
Controls | 1x Input Attenuation Rotary Switch1x Rotary Encoder (Delay 9.9 ms)1XPolarity Inversion Switch (0° or 180°)1xCardioid Mode Switch 1x X-Over Freq Switch (60-110 Hz + Full Range 1x System Auto-test |
Mechanics
Housing | Multiplex plywood Polyurea painted |
Handles | 2x Per Side Aluminium |
Pole Mount | M20 Thread |
Raincover | Included |
Rigging Points | 2xPick Points on top to fix DRK-210 rigging frame (stack use)4x Pick Points on top and 4x on bottom for rigging |
Width | 720 mm (28.34 in) |
Height | 520 mm (20.47 in) |
Depth | 695 mm (27.36 in) |
Weight | 45.1 kg (99.42 lbs) |
