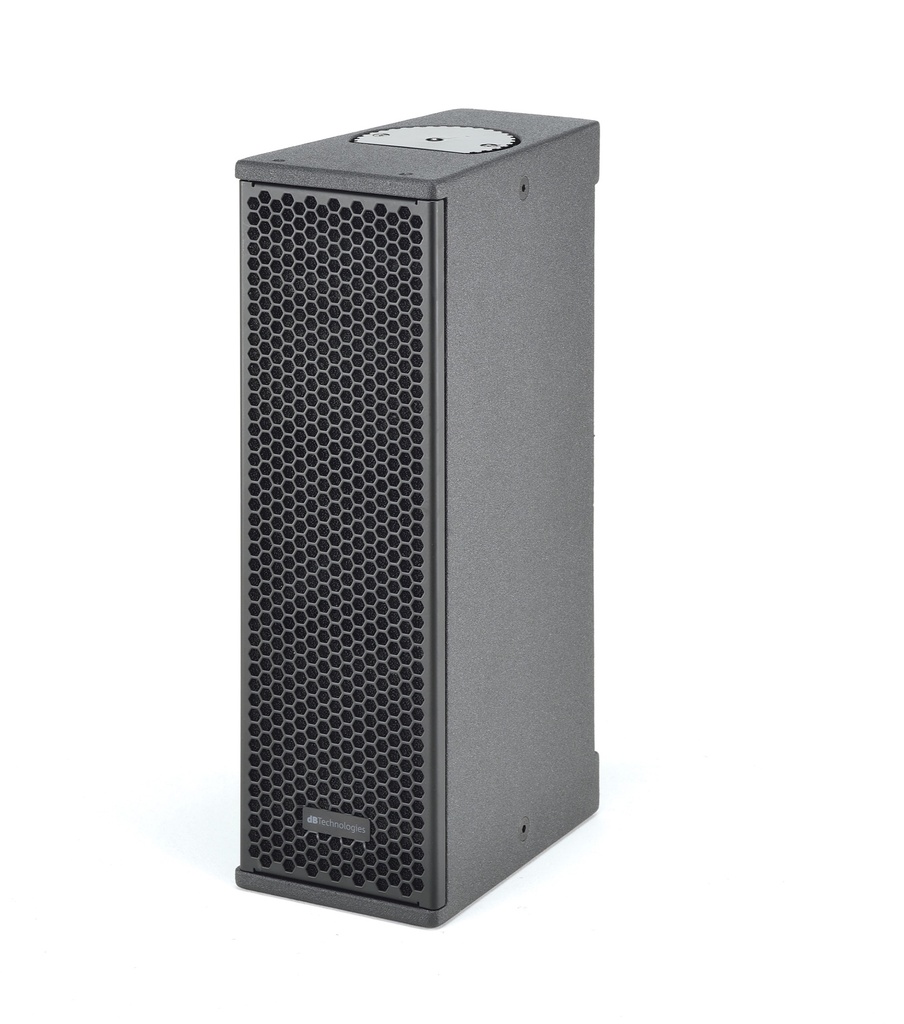

VIO-X205- 60
Active 2- Way, 2x5"/1x1", 400W RMS, 60 x60°
MULTIPURPOSE POINT-SOURCE
The powerful and detailed sound of VIO X family into a small, ultra-performing cabinet: ideal as front-fill or under balcony in large VIO sound reinforcement systems and perfect for vertical or horizontal fixed installation.
|
Technical Data |
|
|
Speaker Type |
2 Way Active Loudspeaker |
|
|
|
|
Acoustical data |
|
|
Usable bandwidth [-10dB] |
75 - 21.000 Hz |
|
Frequency Response [-6dB] |
80 - 20.000 Hz |
|
Max SPL |
126 dB |
|
HF |
1x 1”, 1.4 v.c. |
|
LF |
2x 5”, 1" v.c |
|
VIO X205-60 Directivity |
60° x 60° |
|
VIO X205-100 Directivity |
100° x 100° |
|
|
|
|
Amplifier |
|
|
Amplifier |
400 W RMS Class-D Digipro® G3 |
|
Cooling |
Convection |
|
Power Supply |
Auto-range SMPS |
|
|
|
|
Processor |
|
|
Controller |
DSP 28/56 bit |
|
AD/DA Converter |
24 bit/48 kHz |
|
Limiter |
Peak, RMS, Thermal |
|
Processing |
FIR Linear Phase Filters |
|
|
|
|
Input |
|
|
Signal Input |
1 x XLR balanced, 1 x RJ45 Link (RDNet), 1x USB (Data Service) |
|
Signal Output |
1x XLR balanced, 1 x RJ45 Link (RDNet) |
|
Power Socket |
1x PowerCON TRUE1 In |
|
Controls |
1x Rotary Encoder (8x EQ presets) 1x Input Attenuation Rotary Switch |
|
|
|
|
Mechanics |
|
|
Housing |
Wooden Cabinet, Polyurea painting |
|
Handles |
1x (top) |
|
Wedge Angle |
Monitor Use 5° |
|
Rigging points |
2x M10 Threaded Nuts (top and bottom) |
|
Width |
150 mm (5.9 in) |
|
Height |
485 mm (19 in) |
|
Depth |
240 mm (9.4 in) |
|
Weight |
7.8 kg (17.2 lbs) |
