Electrocompaniet

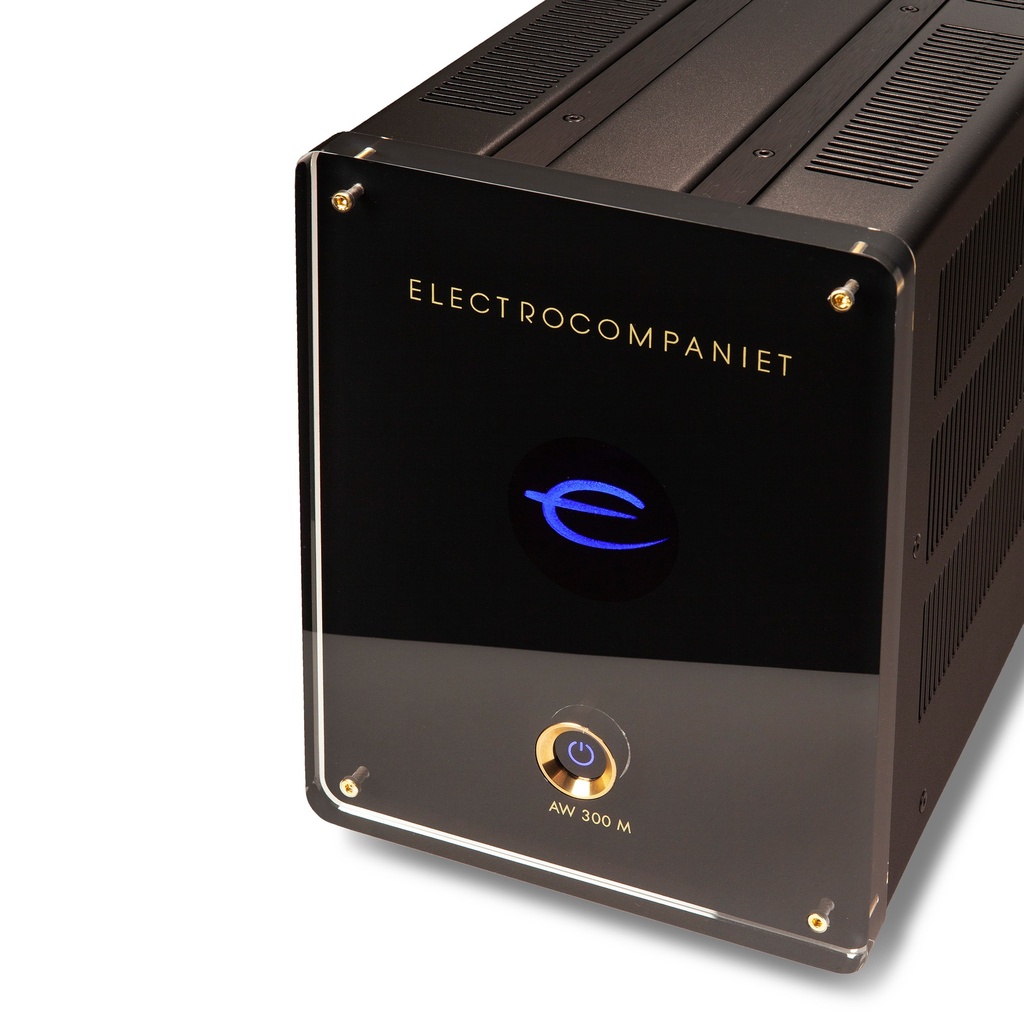

AW 300 M

https://www.mgmaudio.ch/web/image/product.template/2170/image_1920?unique=2aeef9a

Mono Power Amplifier

CHF 11,933.40 11933.4 CHF CHF 11,933.40 VAT Included

CHF 11,933.40 VAT Included

Preis auf Anfrage

Wird für Sie bestellt

Diese Kombination existiert nicht.

Kontaktieren Sie uns

Geschäftsbedingungen
Versand: 2-3 Arbeitstage

The AW 300 M is Electrocompaniet’s latest Mono Power Amplifier. This amplifier embodies an updated, yet unmistakable Electrocompaniet design, perfectly complementing both current and legacy Electrocompaniet products.


Technical specifications

Input impedance: 330 kΩ
Frequency resp. (in. filter active):0.5 – 220 kHz
Frequency resp. (in. filter dis.): 0.5 – 1.1 MHz
Voltage gain (mono, bal. input):  29 dB (x28)
Input-referred noise (20-20kHz):  < 2 μV
SNR (ref. 1W/8Ω load, 20-20 kHz):  95 dB
SNR (ref. full power out, 20-20 kHz): 120 dB
Slew-rate (input filter disabled): 140 V/μs
DC output voltage: < 5 mV
THD+N: 0.0006 %
IMD: 0.001 %
Damping factor (8Ω load): > 1000
Power consumption standby: < 0.5W
Protection: DC, overload, temperature






RATED OUTPUT POWER MONO:
8Ω load: 300 W
4Ω load: 600 W
2Ω load: 1000 W




WEIGHT & DIMENSIONS:
Width:   212 mm – 8.34 inches
Depth:   488 mm – 19.21 inches
Height:  292 mm – 11.49 inches
*Features and specifications are subject to change without further notice.
