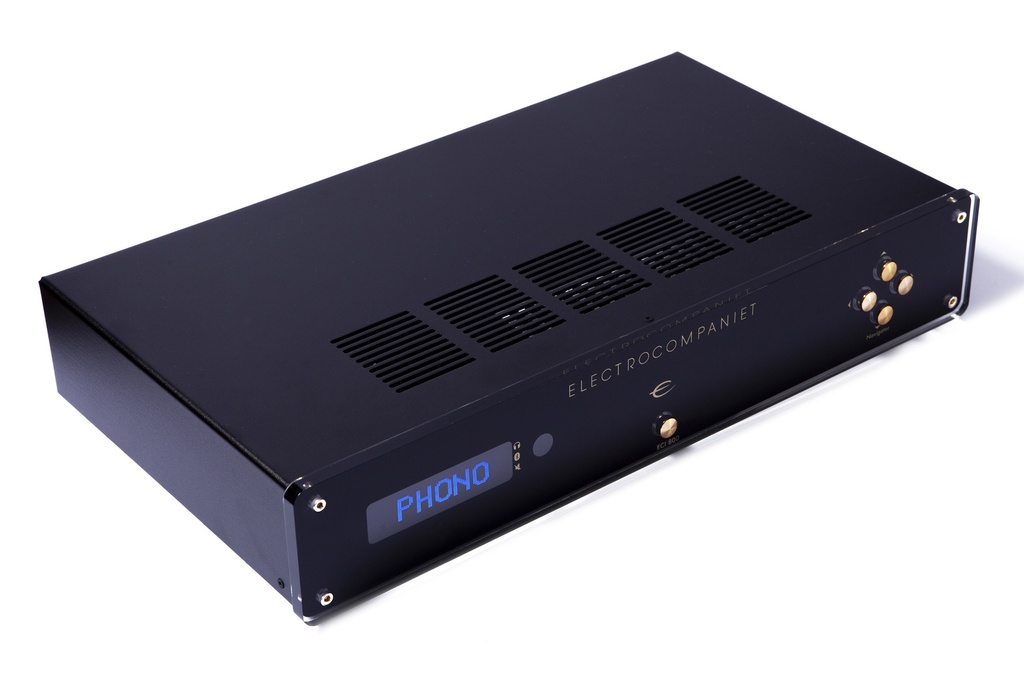

ECI-80D
Integrated Amplifier
We have equipped it with a built-in RIAA pre-amplifier for your LP player (MM cartridge support), 2-way Bluetooth HD for both streaming from your iOS, Android unit, Mac, or PC, and also HD streaming to your High-end headphones. And of course a 5-input DAC (3 Toslink, 2 COAX)
|
PREAMPLIFIER: |
|
Input impedance: 75 kOhms |
|
Noise floor:< -130dB |
|
THD+N: < 0.002% |
|
Frequency response (-3dB): 1 – 150 kHz |
|
Volume adjustment range: - 110dB to +15 dB |
|
|
|
OUTPUT AMPLIFIER: |
|
THD+N: < 0.005% |
|
Output power (into 8 Ohms): 2 x 80W |
|
Output power (into 4 Ohms): 2 x 150W |
|
Damping factor (8 Ohms load): > 300 |
|
Frequency response (-3dB): 1 – 150kHz |
|
SNR (input shorted, ref 1W into 8 ohms, A-weighted): 102 dB |
|
Gain: 25 dB |
|
Protection: DC, overload, temperature |
|
|
|
RIAA PHONO: |
|
Pickup support: Moving Magnet |
|
Gain: 40 dB @ 1kHz |
|
Input impedance: 47 kOhms || 100pF |
|
RIAA correction accuracy: +/-0.1dB, 25-20kHz |
|
Subsonic filter: -3 dB @ 14 Hz |
|
THD: < 0.001% |
|
SNR: 83 dB (A-weighted) |
|
Overload margin: 30dB @ 1kHz |
|
|
|
HEADPHONE AMPLIFIER: |
|
THD+N: < 0.001% |
|
Load impedance single output in use: > 16 Ohms |
|
Load impedance both outputs in use: > 32 Ohms |
|
Max output power (into 16 Ohms load): 0.4W |
|
Max output voltage swing: +/-8V peak |
|
Output impedance: 10 Ohms |
|
Protection: DC, overload |
|
|
|
DIGITAL & STREAMING: |
|
Optical input: PCM: 44.1kHz/16bit up to 192kHz/24bit |
|
Coaxial input: PCM: 44.1kHz/16bit up to 192kHz/24bit |
|
Bluetooth support: BT5.0, A2DP, SBC, AAC, aptX-HD |
|
|
|
CONNECTIVITY: |
|
Digital inputs: 2 coaxial, 3 optical |
|
Analog inputs: 2 RCA |
|
Analog preamplifier output: 1 RCA |
|
Service port: 1 USB |
|
12V trigger: 1 input, 1 output |
|
Phono MM: 1 RCA |
|
Headphone outputs: 3.5mm jack + 6.35mm jack |
|
Speaker outputs: 1 pair binding posts |
|
|
|
WEIGHT & DIMENSIONS: |
|
Weight: 8 kg – 17.6 lbs |
|
Width: 470 mm – 18.5 inches |
|
Depth: 262 mm – 10.3 inches |
|
Height: 90 mm – 3.5 inches |
|
|
|
VOLTAGE & POWER CONSUMPTION: |
|
Mains input voltage: 100-240VAC, 50/60Hz, 3A |
|
Idle (no load or signal): 30 W |
|
Standby: < 0.5 W |
|
OFF (main switch OFF): 0 W |
|
|
|
*Specifications are subject to change without further notice |
