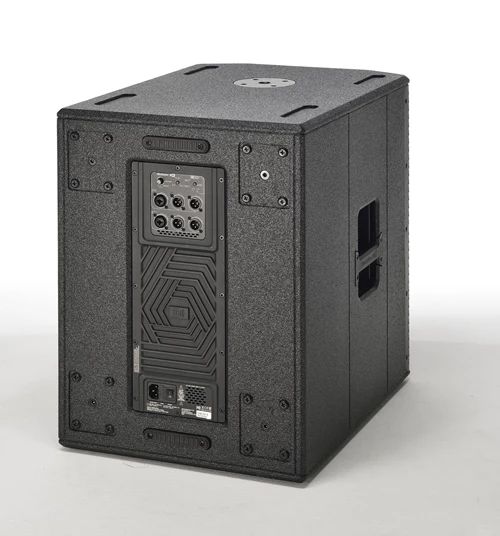

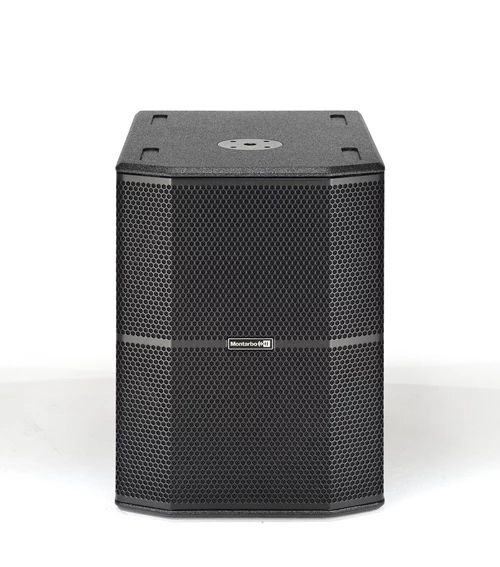

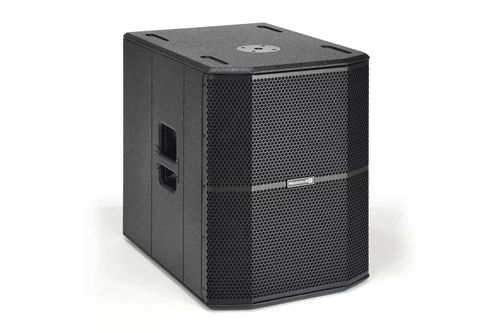

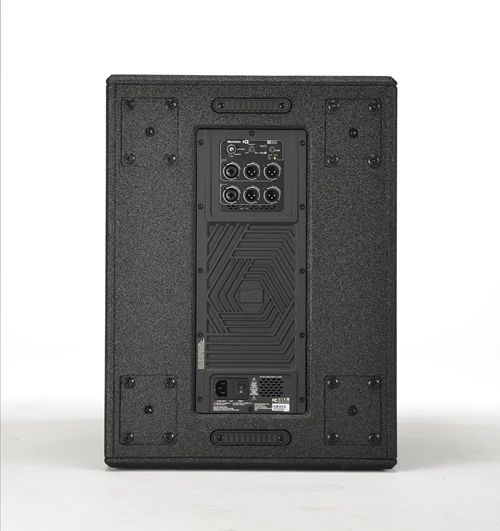

R-15S
Sub-Bass active 15", 500/1000W
R15S is a wooden active subwoofer, 15" woofer, 130 dB SPL and 45 Hz - Cut Frequency.
R15S and R18S active subwoofers share the same rugged enclosure and elegant finish of their full-range companions. The M20 thread for pole mount makes installation very easy.
Both subs of the series feature a Stereo input and a cross over Output. This is very convenient for plug&play applications, using a PA comprised of 1 sub and 2 tops, as you don't need any external processor to manage the crossover and the signal routing: you just feed the sub with both left and right signals, and then you can split your signal directly on board thanks to the crossover output.
When needed, you can simply use it as a link out to provide full range signal to another sub.
Caratteristiche
- 15" woofer
- 45 Hz - Cut Frequency
- Active Stereo Subwoofer
TECHNICAL SPECIFICATIONS
Acoustical Data
| Speaker Type | Active Stereo Subwoofer |
| Frequency Response [-10 dB] | 45 Hz - 20 kHz |
| Max SPL | 130 dB |
| LF | 15" - 4" VC |
Amplifier
| Amp Class | D |
| RMS Power | 500 W |
| Peak power | 1000 W |
| Cooling | Passive Radiator |
DSP
| DSP | 28/56 Bit |
| AD/DA Converter | 24 bit, 48 kHz |
| Controls | LEVEL, XOVER selection, POLARITY selection |
| Connectors | CH1/CH2: Combo, LINE OUT: XRL-M (LINK+XOVER) |
Enclosure
| Dimensions | 430 x 580 x 590 mm [16.9” x 22.8” x 23.2”] |
| Weight | 31.9 kg [70.32 lb] |
| Cabinet | Multilayer wood with polyurea finish |
