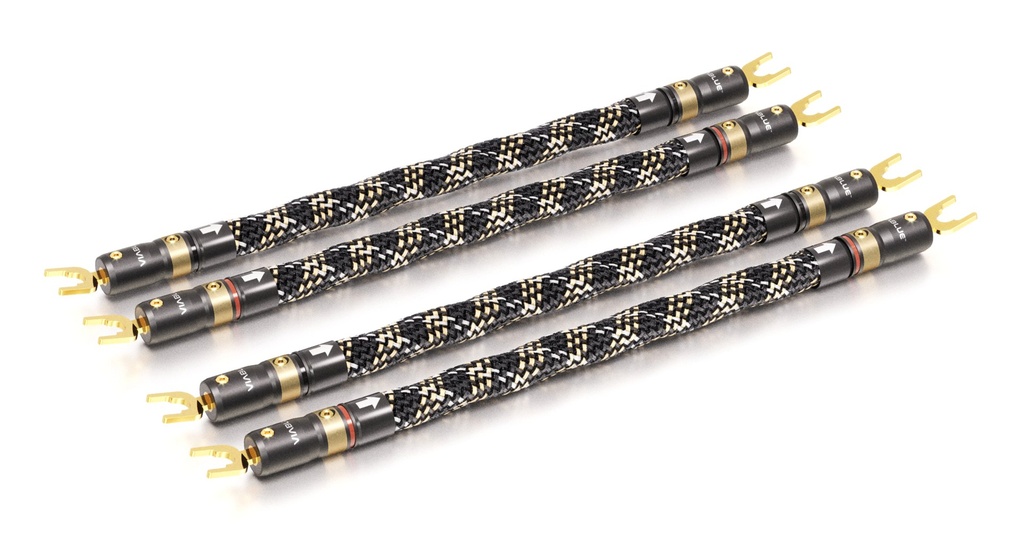

VIABLUE™ SC-6 AIR Silver-Series jumper bridges provide you with a pure sound and crystal clear acoustic patterns, brilliant highs and powerful basses. A striking distinction of all frequencies creates a wide and open stage.
VIABLUE™ SC-6 AIR jumper bridges consist of the 3 single conductors of the SC-6 AIR speaker cables. Each of these conductors contain 6 single strands, which are arranged in a circular fashion around isolating Air Pipes.
The set-up of combining air pipes with transmitting strands ensures a physical separation of the conductors and thus of all frequencies. The result: No disturbing temporary hold of electrical charges, so-called capacity, within the cable. The Air Pipe system also prevents inductance, unwanted magnetic fields.
VIABLUE™ SC-6 AIR jumper bridges guarantee a complete and fast signal transmission true to the original. Enjoy brilliantly isolated musical elements and impressive timbres.
Connection between high-pass and low-pass
The SC-6 cable bridges replace existing sheet metal bridges on bi-wire loudspeaker terminals. This offers a precise high frequency rendition and vibrant basses due to a loss-free connection. Stated lengths are measured between the connectors at the visible cable.
Hear every single detail
- 3 main conductors each containing 6 single conductors – 1x high-pass, 1x mid, 1x low-pass
- 342 single strands with 3 Airpipes per cable bridge
- High-pass silvered, mid tinned, low-pass pure OFC copper
VIABLUE™ SC-6 AIR jumper bridges consist of 3 strands of a SC-6 AIR speaker cable. During production, the outer shell, as well as 4 parting airpipes are removed. The 6 single conductors of the cable are then assembled to 2 jumper bridges. Once finished, each cable bridge contains 3 strands, including 6 single conductors, as well as one airpipe.
Arrangement of transmission conductors in circular assembled bundles of 6 each
- Very low capacities from approx. 63 resp. 91 pF/m (single conductor to single conductor)
- Complete and fast signal transmission true to the original
- No disturbing temporary hold of electrical charges within the cable
- Result: Brilliant, refined musical elements and impressive timbres
Customized with VIABLUE™ T8 Spades
- Full metal housing, made of black, satin-matt aluminum
- 24 carat real gold-plated
- For an optimal contact pressure
TECHNICAL DETAILS
- 3 conductors per cable bridge: 1x high-pass, 1x mid, 1x low-pass
- Total cross sectional area of 6.12 mm²
- AWG: 6
- 114 single OFC copper strands per cable bridge
- Outer Ø incl. heat shrink: 13 mm
- 24 carat real gold-plated T8 Spades Plugs
- Very low capacities of appr. 91 pF/m (conductor to conductor)
- Burn-in time: approx: 30 hours
- Available size: 15 cm
