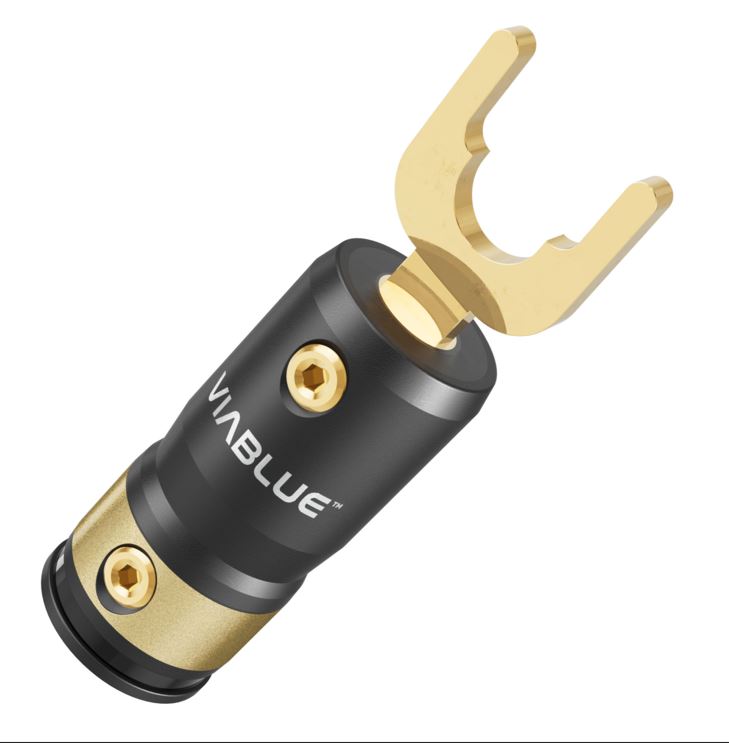

High-end plug connection
- Fork contacts with double opening. 6.4 and 9.5 mm fork width for an individual terminal connection
- 24 carat real gold-plated contacts
- Outer shell made of black, satin-matt aluminum
- Strain relief for cables Ø 3 - 9.5 mm
- Strain relief provided by one M4-hexagon socket screw 1.5 mm
Additional features
- Exchangeable contacts simply by loosening the upper hexagon socket screw. No unsoldering of the connectors needed
- 2 diameter decreasers to comfortably adjust to various cable diameters
Assembly instructions
For cable assembly, contacts can be completely separated from their shell. Stripped cable ends are soldered on the contact piece
Diameter Decreaser
Centric adjustment of cables with small Ø from 3 mm. They reduce the inner diameter where cables are mounted to provide a perfect fit and a professional cable assembly.
TECHNICAL DETAILS
- Ø 13.5 mm
- Shell length 30.5 mm
- Length spade contact 17 mm
- Width spade contact 13.5 mm
- Spade opening 6.4 / 9.5 mm
- Cable input for cable Ø 3 - 9.5 mm
- Inner Ø soldering tub 5 mm
